SKU: 24B-3-SD-NO26-RENOLD

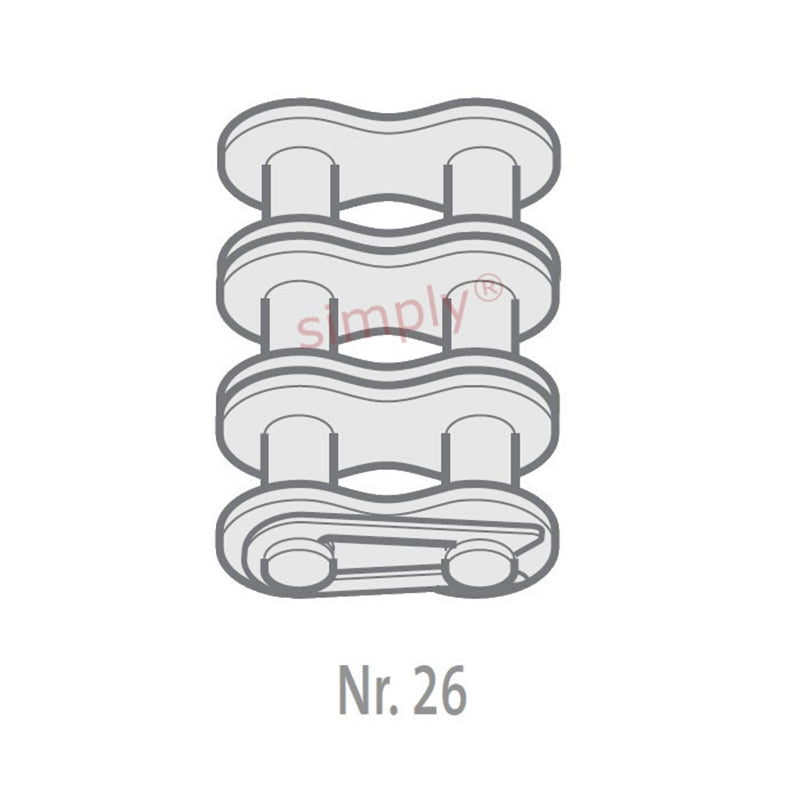

Renold SD 24B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1-1/2 inch Pitch
Renold SD 24B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1-1/2 inch Pitch
Regular price
$71.74
ex VAT
Regular price
Sale price
$71.74
ex VAT
In stock
Price Break
10+
$63.85
19+
$60.26
29+
$59.54
39+
$58.83
49+
$58.11
74+
$57.39
99+
$53.81
199+
$53.09
249+
$52.37
499+
$51.65
999+
$50.22
Couldn't load pickup availability
Description
Description
| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.3mm |
| Plate Width Inner max (E) | 6mm |
| Plate Width Outer max (F) | 5.2mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H1) | 143.1mm |
| Connecting Link Extension max (J) | 12.6mm |
| ISO606 Tensile Strength min | 460000 N |
| Weight | 0.28kg/m |
