SKU: 24B-3-NO12-MB
Branded 24B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Branded 24B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Regular price
$46.66
ex VAT
Regular price
Sale price
$46.66
ex VAT
Equivalent to: 24B-3-OL
In stock
Price Break
2+
$22.04
5+
$20.80
10+
$20.55
29+
$20.30
49+
$20.06
75+
$19.81
100+
$18.57
200+
$18.32
250+
$18.07
500+
$17.83
1000+
$17.33
Description
Description

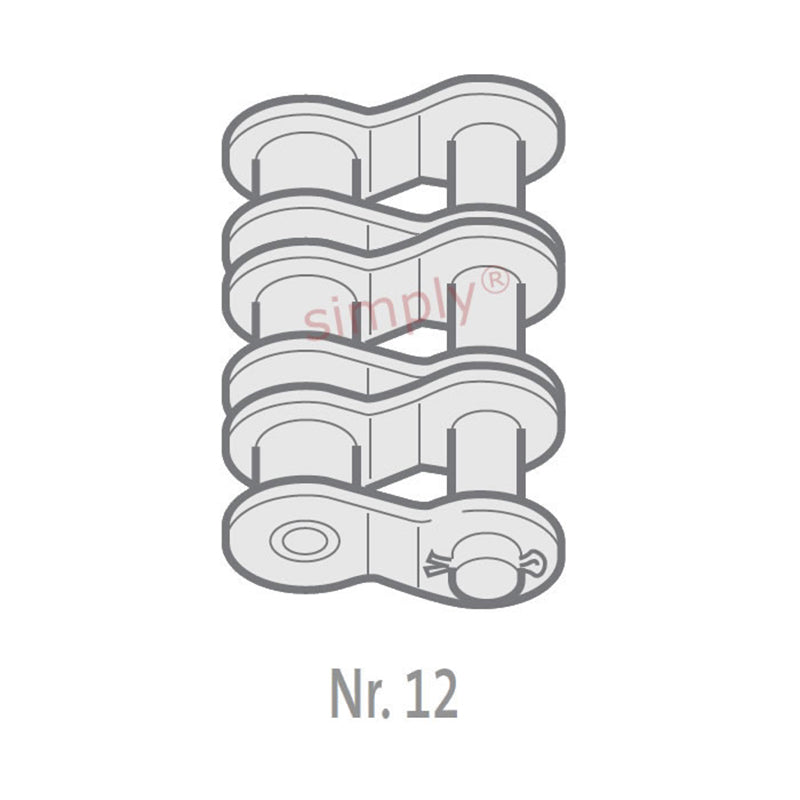

Branded OL / No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 24B-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.3mm |
| Plate Width Inner max (E) | 6mm |
| Plate Width Outer max (F) | 5.2mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H3) | 143.1mm |
| Connecting Link Extension max (J) | 12.6mm |
| ISO606 Tensile Strength min | 460000 N |
| Weight | 0.28kg/m |
