SKU: 24B-3-NO11-DUN
Branded 24B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Branded 24B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
$23.22
ex VAT
Regular price
Sale price
$23.22
ex VAT
Equivalent to: 24B-3-CL-COT 24B-3-CL
In stock
Price Break
2+
$10.96
5+
$10.35
10+
$10.23
29+
$10.10
49+
$9.98
75+
$9.86
100+
$9.24
200+
$9.12
250+
$8.99
500+
$8.87
1000+
$8.62
Description
Description

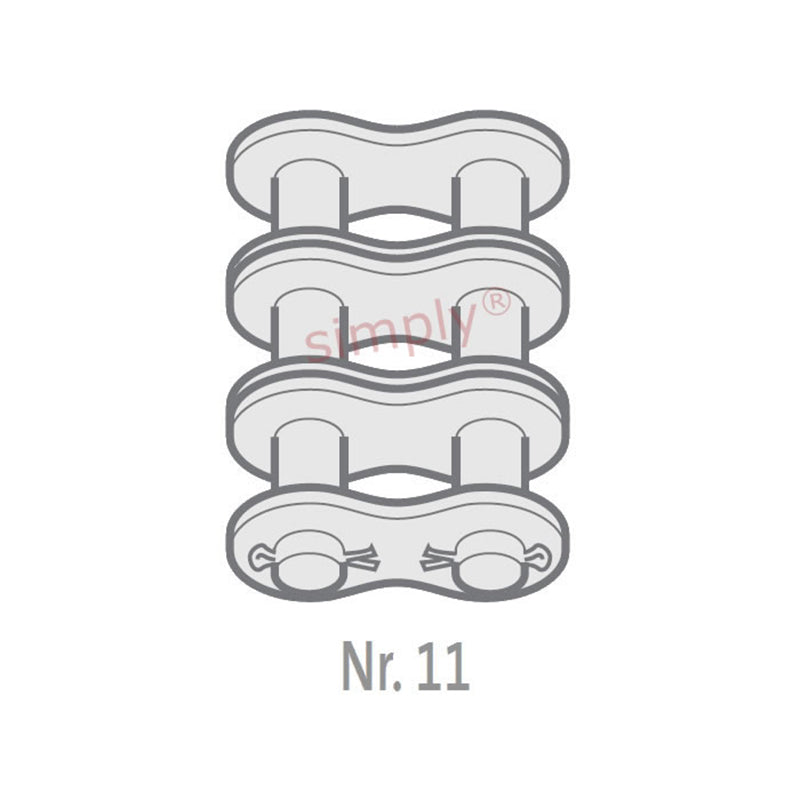

Dunlop COT / No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 24B-3-CL-COT 24B-3-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.3mm |
| Plate Width Inner max (E) | 6mm |
| Plate Width Outer max (F) | 5.2mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H3) | 143.1mm |
| Connecting Link Extension max (J) | 12.6mm |
| ISO606 Tensile Strength min | 460000 N |
| Weight | 0.28kg/m |
