Renold Blue Box 24B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Renold Blue Box 24B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Regular price
$403.28
ex VAT
Regular price
Sale price
$403.28
ex VAT
In stock
Price Break
2+
$190.46
5+
$179.76
10+
$177.62
29+
$175.48
49+
$173.34
75+
$171.20
100+
$160.50
200+
$158.36
250+
$156.22
500+
$154.08
1000+
$149.80
Description
Description

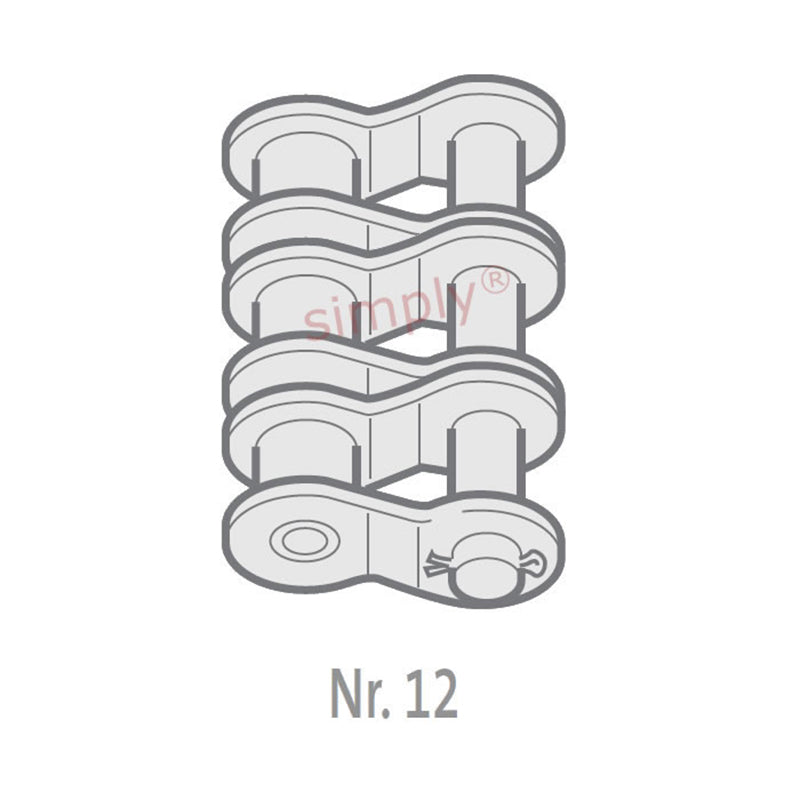

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.4mm |
| Plate Width Inner max (E) | 6.1mm |
| Plate Width Outer max (F) | 5.08mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H2) | 149.7mm |
| Connecting Link Extension max (J) | 6.8mm |
| Transverse Pitch nom (K) | 48.36mm |
| ISO606 Tensile Strength min | 425000 N |
| Weight | 0.19kg/m |
