SKU: 24B-2-NO12-MB
Branded 24B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Branded 24B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Regular price
$36.63
ex VAT
Regular price
Sale price
$36.63
ex VAT
Equivalent to: 24B-2-OL
In stock
Price Break
2+
$17.30
5+
$16.33
10+
$16.14
29+
$15.94
49+
$15.75
75+
$15.55
100+
$14.58
200+
$14.39
250+
$14.19
500+
$14.00
1000+
$13.61
Description
Description

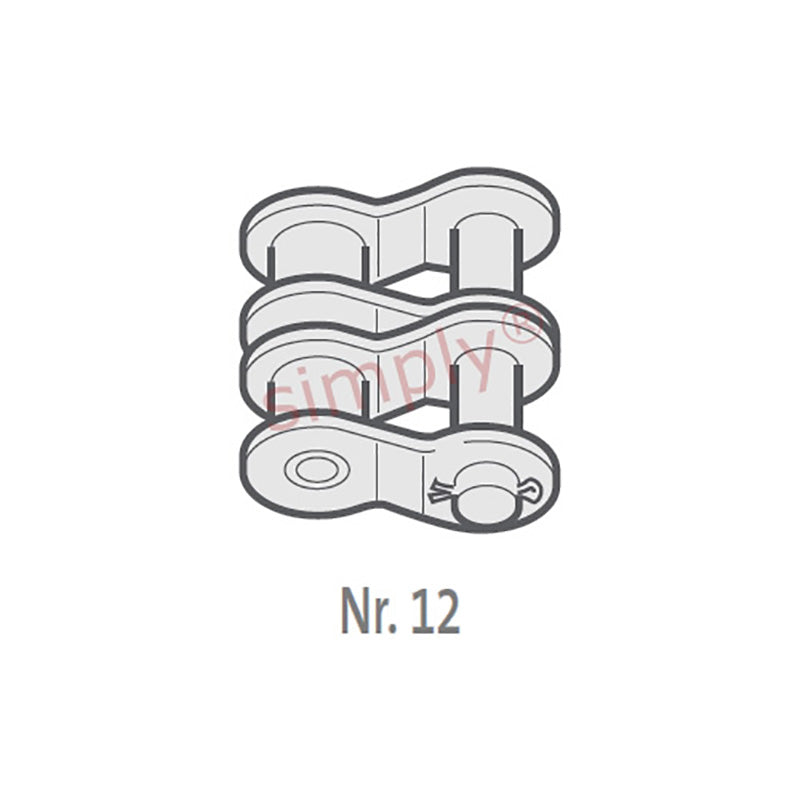

Branded OL / No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 24B-2-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.3mm |
| Plate Width Inner max (E) | 6mm |
| Plate Width Outer max (F) | 5.2mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H2) | 101.6mm |
| Connecting Link Extension max (J) | 4.30000000000001mm |
| Transverse Pitch nom (K) | 48.36mm |
| ISO606 Tensile Strength min | 280000 N |
| Weight | 0.19kg/m |
