SKU: 24B-2-NO11-MB

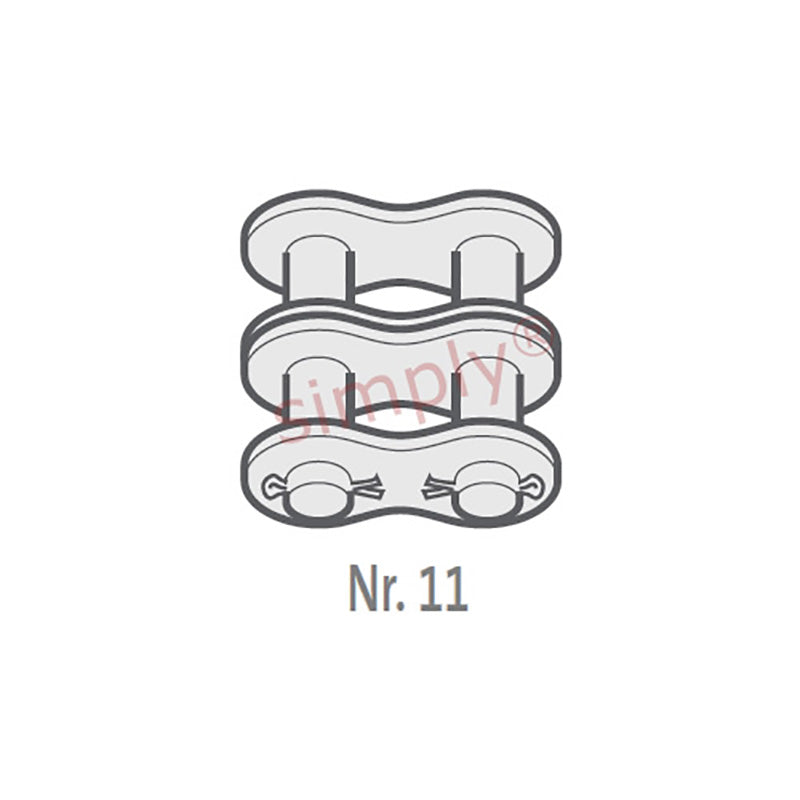

Branded 24B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Branded 24B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
$18.32
ex VAT
Regular price
Sale price
$18.32
ex VAT
Equivalent to: 24B-2-CL-COT 24B-2-CL
In stock
Price Break
2+
$8.65
5+
$8.16
10+
$8.07
29+
$7.97
49+
$7.87
75+
$7.78
100+
$7.29
200+
$7.19
250+
$7.10
500+
$7.00
1000+
$6.80
Description
Description
Dunlop COT / No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 24B-2-CL-COT 24B-2-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.3mm |
| Plate Width Inner max (E) | 6mm |
| Plate Width Outer max (F) | 5.2mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H2) | 101.6mm |
| Connecting Link Extension max (J) | 4.30000000000001mm |
| Transverse Pitch nom (K) | 48.36mm |
| ISO606 Tensile Strength min | 280000 N |
| Weight | 0.19kg/m |
