• Budget 22207 Spherical Roller Bearing with Cylindrical Bore 35x72x23mm
1 1

SKU: 22207-EU

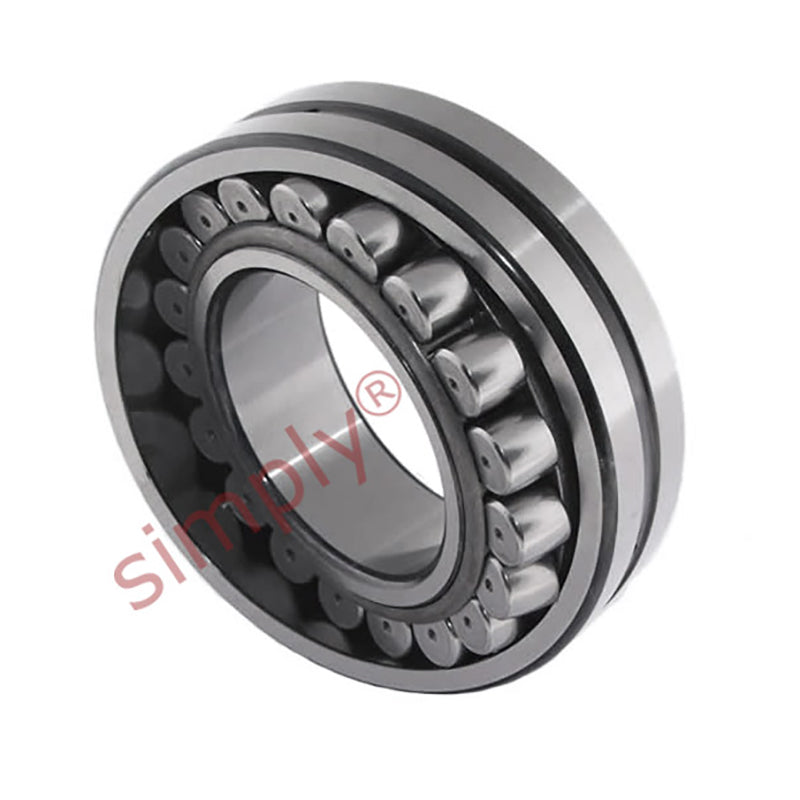

Budget 22207 Spherical Roller Bearing with Cylindrical Bore 35x72x23mm

Budget 22207 Spherical Roller Bearing with Cylindrical Bore 35x72x23mm
$38.56 ex VAT
$38.56 ex VAT
Sale Sold out

In stock

Price Break
10+ $18.21
19+ $17.19
29+ $16.98
39+ $16.78
49+ $16.57
74+ $16.37
99+ $15.35
199+ $15.14
249+ $14.94
499+ $14.73
999+ $14.32
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
23mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Dimensions
d 35mm
D 72mm
B 23mm
d2 44.5mm
D1 61.8mm
b 3.7mm
K 2mm
r1r2 min 1.1mm
da min 42mm
Da max 65mm
ra max 1mm
--- Speeds, Loads and Weights
Dynamic Load Rating 86.5kN
Static Load Rating 85kN
Fatigue Load Limit 9.3kN
Reference Speed 9000rpm
Limit Speed 12000rpm
Weight 0.45kg
--- Factors
e 0.31
Y1 2.2
Y2 3.3
Y0 2.2
