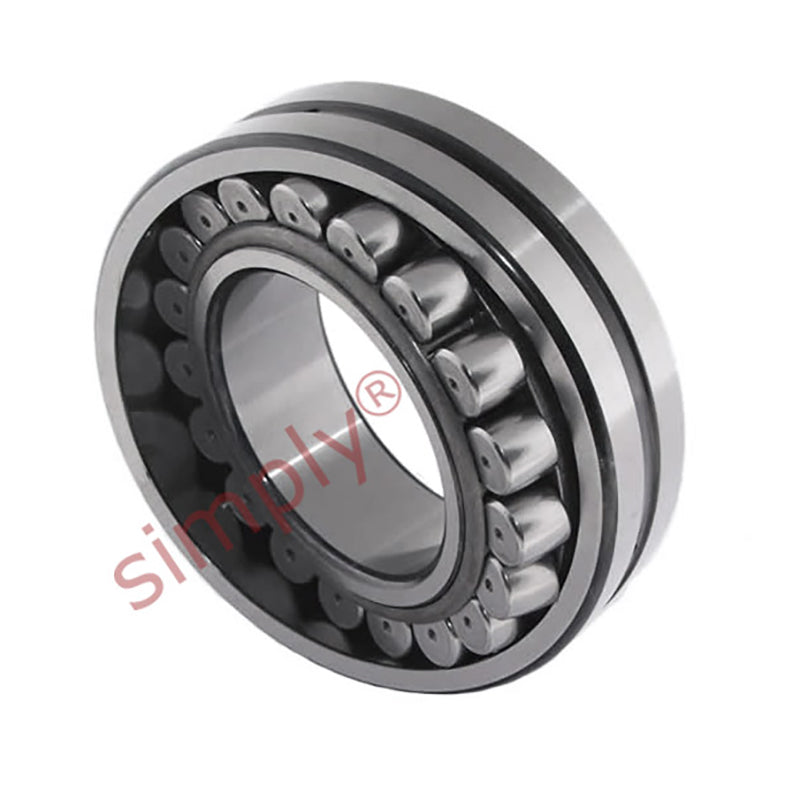

• Budget 22205K Spherical Roller Bearing with Taper Bore 25x52x18mm
1 1

SKU: 22205K-EU

Budget 22205K Spherical Roller Bearing with Taper Bore 25x52x18mm

Budget 22205K Spherical Roller Bearing with Taper Bore 25x52x18mm
$17.00 ex VAT
$17.00 ex VAT
Sale Sold out

Equivalent to: 22205K

In stock

Price Break
10+ $8.03
19+ $7.58
29+ $7.49
39+ $7.40
49+ $7.31
74+ $7.22
99+ $6.77
199+ $6.67
249+ $6.58
499+ $6.49
999+ $6.31
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options

Equivalent: 22205K
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
52mm
Width:
18mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Dimensions
d 25mm
D 52mm
B 18mm
d2 31.2mm
D1 44.2mm
b 3.7mm
K 2mm
r1r2 min 1mm
da min 30.6mm
Da max 46.4mm
ra max 1mm
--- Speeds, Loads and Weights
Dynamic Load Rating 49kN
Static Load Rating 44kN
Fatigue Load Limit 4.75kN
Reference Speed 13000rpm
Limit Speed 17000rpm
Weight 0.26kg
--- Factors
e 0.35
Y1 1.9
Y2 2.9
Y0 1.8
--- Matching Adaptor Sleeves
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H305+sleeve>H305</a>
