SKU: 2212.K.2RS.C3.MB

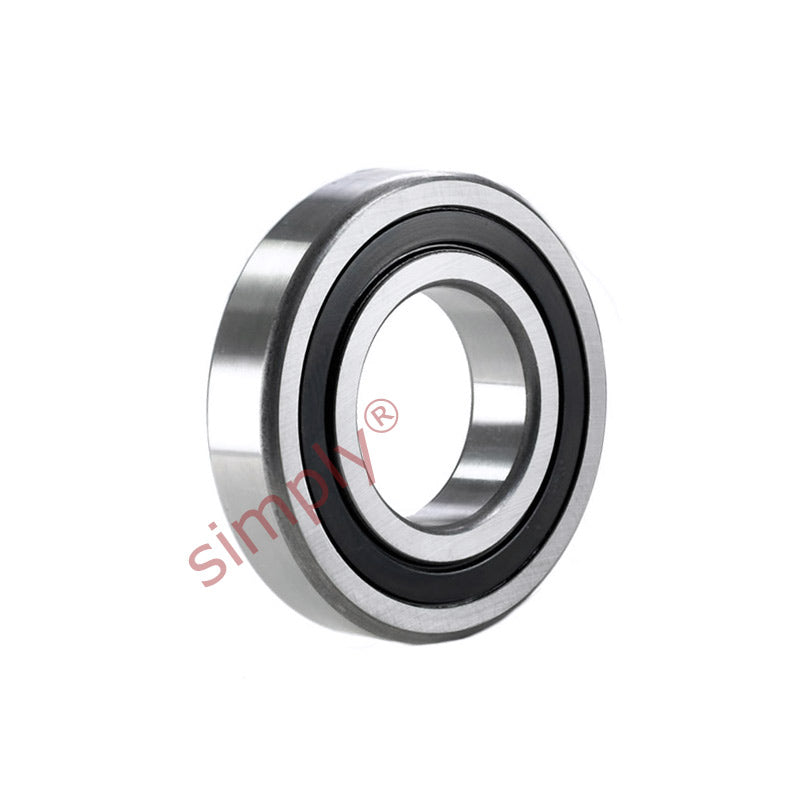

2212K2RSC3 Rubber Sealed Self Aligning Ball Bearing with Taper Bore 60x110x28mm
2212K2RSC3 Rubber Sealed Self Aligning Ball Bearing with Taper Bore 60x110x28mm
Regular price
$105.85
ex VAT
Regular price
Sale price
$105.85
ex VAT
Equivalent to: 2212EK2RSC3 2212K-2RSC3
In stock
Price Break
10+
$49.99
19+
$47.18
29+
$46.62
39+
$46.06
49+
$45.50
74+
$44.94
99+
$42.13
199+
$41.57
249+
$41.00
499+
$40.44
999+
$39.32
Share this product
Description
Description
|
Rubber Sealed Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. Supplied with two rubber seals this provided protection from the surrounding environment but limits the amount of self alignment Benefits: Tolerates misalignment, cool running, self centering |
Equivalent: 2212EK2RSC3 2212K-2RSC3
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 28mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 60mm |
| D | 110mm |
| B | 28mm |
| r1r2 min | 1.5mm |
| --- | Speeds, Loads and Weights |
| Dynamic Load | 31.2kN |
| Static Load | 12.1kN |
| Pu | 0.6Kn |
| Limiting Speed | 8000rpm |
| Weight | 1.07kg |
| --- | Factors |
| e | 0.18 |
| Fa/Fr = e | 3.5 |
| Fa/Fr > e | 5.4 |
| Y0 | 3.6 |
