SKU: 210L-100-56

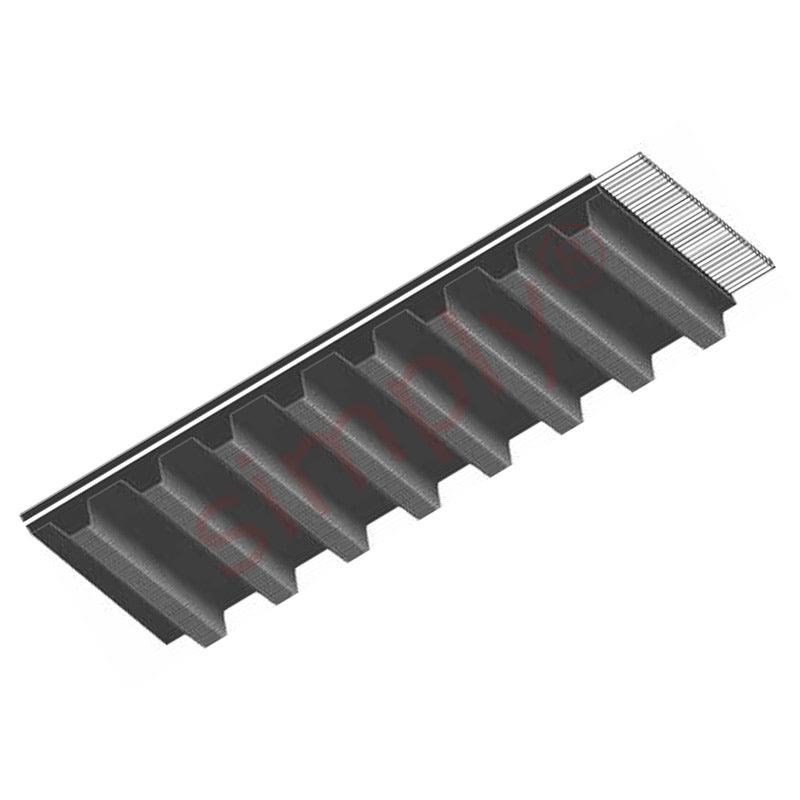

Major Brand 210L100 Synchronous Toothed Belt 1.00 inch Wide 21 inch Length 56 Teeth
Major Brand 210L100 Synchronous Toothed Belt 1.00 inch Wide 21 inch Length 56 Teeth
Regular price
$17.73
ex VAT
Regular price
Sale price
$17.73
ex VAT
In stock
Price Break
3+
$8.38
5+
$7.91
10+
$7.81
15+
$7.72
20+
$7.63
30+
$7.53
40+
$7.06
50+
$6.97
60+
$6.87
75+
$6.78
100+
$6.59
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 25.4mm = 1 inch
- Belt Depth Approx:
- 3.6mm
- Belt Length Approx:
- 533.4mm = 21 inch
- Number of Teeth:
- 56
Technical
Technical
| Belt width | 1.00 inch = 25.40mm |
|---|---|
| Pitch length | 21 inch = 533.4mm |
| Number of teeth | 56 |
| Tooth pitch t | 0.375 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.07519685 inch |
| Pitch zone u | 0.015 inch |
