SKU: 20B-3-SYN-NO11-RENOLD
Renold Synergy 20B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Renold Synergy 20B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
$229.26
ex VAT
Regular price
Sale price
$229.26
ex VAT
In stock
Price Break
10+
$204.04
19+
$192.58
29+
$190.29
39+
$187.99
49+
$185.70
74+
$183.41
99+
$171.95
199+
$169.65
249+
$167.36
499+
$165.07
999+
$160.48
Couldn't load pickup availability
Description
Description

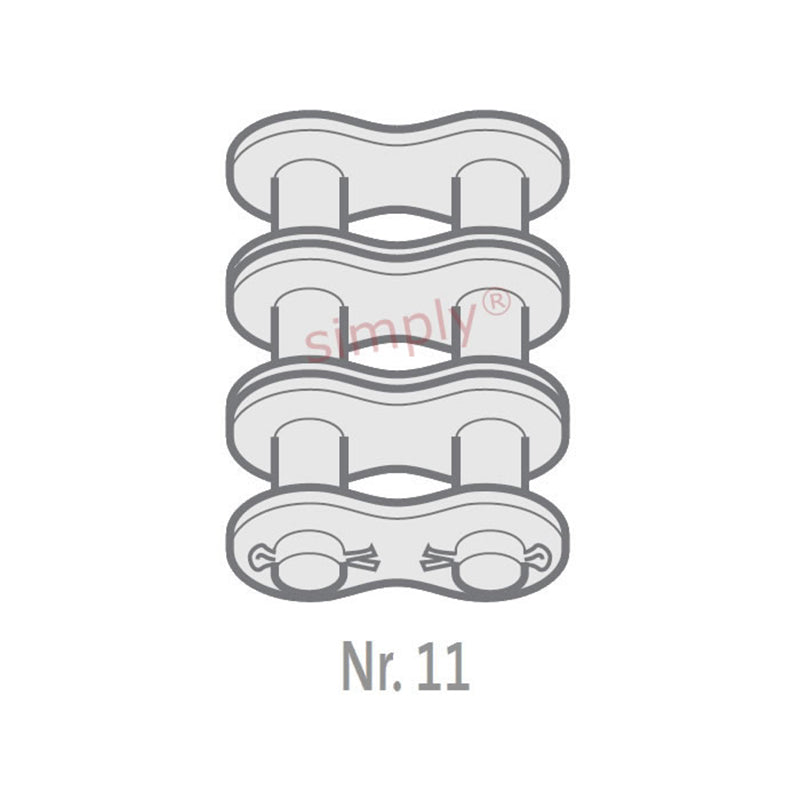

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.42mm |
| Plate Width Inner max (E) | 4.62mm |
| Plate Width Outer max (F) | 3.61mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H2) | 113.2mm |
| Connecting Link Extension max (J) | 2.7mm |
| Transverse Pitch nom (K) | 36.45mm |
| ISO606 Tensile Strength min | 250000 N |
| Weight | 0.22kg/m |
