SKU: 20B-1-SNX-NO30-RENOLD
Renold SYNO 20B-1-NO30 BS Simplex Chain Double Cranked Link 1-1/4 inch Pitch
Renold SYNO 20B-1-NO30 BS Simplex Chain Double Cranked Link 1-1/4 inch Pitch
Regular price
$189.33
ex VAT
Regular price
Sale price
$189.33
ex VAT
In stock
Price Break
2+
$89.42
5+
$84.40
10+
$83.39
29+
$82.39
49+
$81.38
75+
$80.38
100+
$75.35
200+
$74.35
250+
$73.34
500+
$72.34
1000+
$70.33
Description
Description

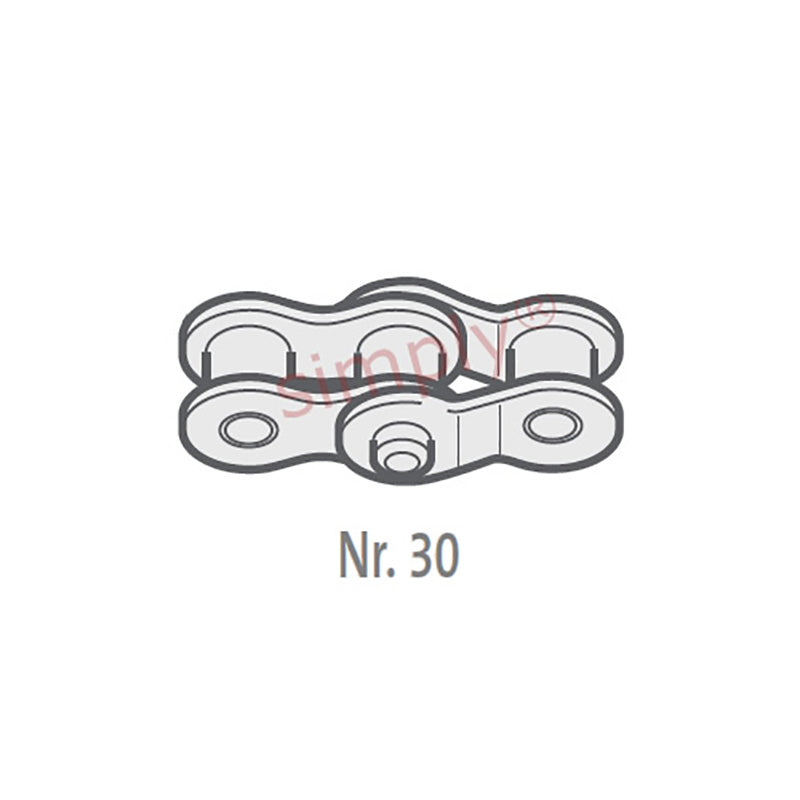

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.42mm |
| Plate Width Inner max (E) | 4.62mm |
| Plate Width Outer max (F) | 3.61mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H1) | 39.8mm |
| Connecting Link Extension max (J) | 2.7mm |
| ISO606 Tensile Strength min | 95000 N |
| Weight | 0.04kg/m |
