SKU: 206KPP4-MB

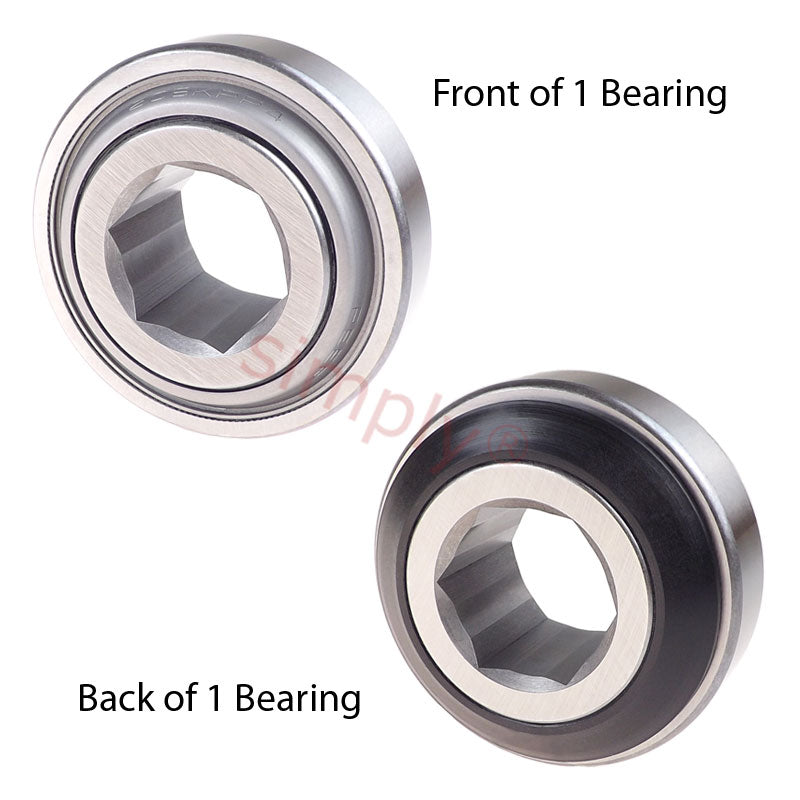

Major Brand 206KPP4 Seeder Hex Bore Nylon Slinger Included Bearing 1.001x2.4409x1.06 inch
Major Brand 206KPP4 Seeder Hex Bore Nylon Slinger Included Bearing 1.001x2.4409x1.06 inch
Regular price
$42.35
ex VAT
Regular price
Sale price
$42.35
ex VAT
In stock
Price Break
10+
$37.69
19+
$35.57
29+
$35.15
39+
$34.73
49+
$34.30
74+
$33.88
99+
$31.76
199+
$31.34
249+
$30.92
499+
$30.49
999+
$29.65
Couldn't load pickup availability
Description
Description
Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 25.42mm = 1.001 inch
- Outside Diameter:
- 61.99mm = 2.44 inch
- Width:
- 26.92mm = 1.06 inch
Technical
Technical
| d | 1.001 inch = 25.4254mm (Tolerance +.0000 to minus 0.005) |
|---|---|
| D | 2.4409 inch = 61.99886mm (Tolerance +.0000 to minus 0.0005) |
| Bi | 1.06 inch = 26.924mm |
| Be | 0.6299 inch = 15.99946mm |
| Be & Bi | (Tolerance +.0000 to minus 0.0047) |
| Seal/Shield Type | P, TRL Seal |
| Load Ratings Dynamic | 4370 lbf |
| Load Ratings Static | 2320 lbf |
