SKU: 20226-K-MB-C3-MB

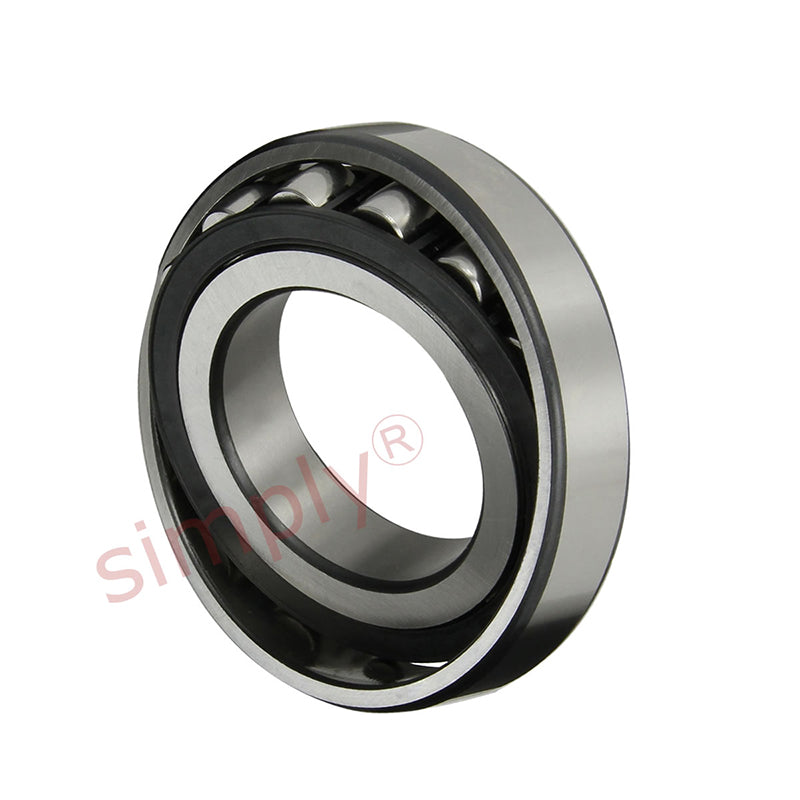

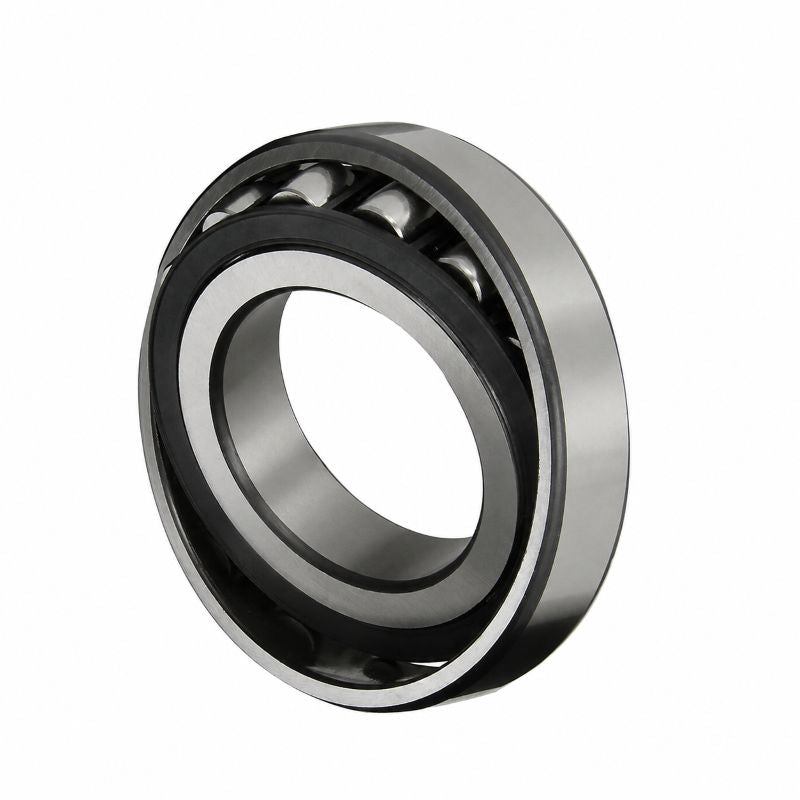

20226KMBC3 Barrel Roller Bearing with Taper Bore 130x230x40mm - Allow 2-3 Days
20226KMBC3 Barrel Roller Bearing with Taper Bore 130x230x40mm - Allow 2-3 Days
Regular price
$1,581.83
ex VAT
Regular price
Sale price
$1,581.83
ex VAT
In stock
Price Break
3+
$747.07
4+
$705.10
9+
$696.70
19+
$688.31
29+
$679.91
39+
$671.52
49+
$629.55
59+
$621.16
249+
$612.76
499+
$604.37
999+
$587.58
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 230mm
- Width:
- 40mm
- Clearance:
- C3
Technical
Technical
| d | 130mm |
|---|---|
| D | 230mm |
| B | 40mm |
| r min | 3mm |
| D1 | 205.7mm |
| da min | 144mm |
| Da max | 216mm |
| ra max | 2.5mm |
| Dynamic load Cr | 335000 N |
| Static load C0r | 450000 N |
| Fatigue limit load Cur | 42500 N |
| Limiting speed nG | 1500 rpm |
| Weight | 7.21 kg |
