SKU: 20219-MB-MB

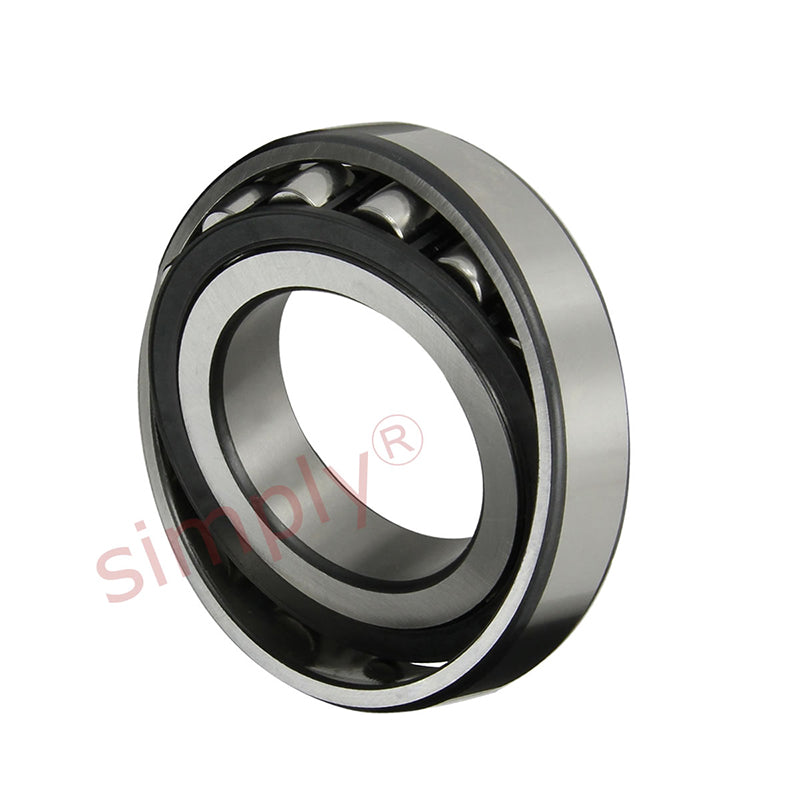

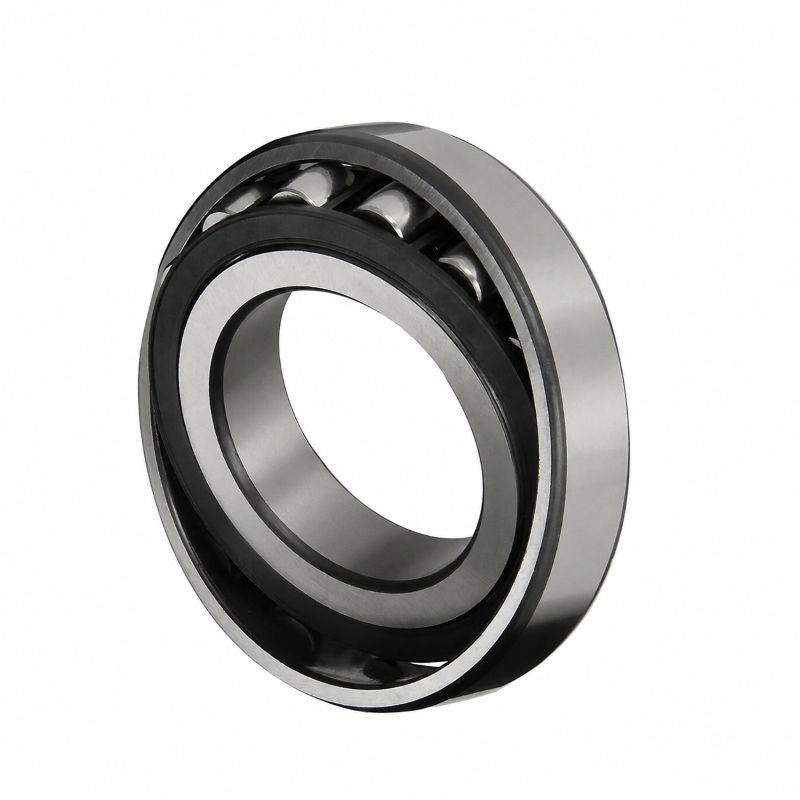

20219MB Barrel Roller Bearing with Cylindrical Bore 95x170x32mm - Allow 2-3 Days
20219MB Barrel Roller Bearing with Cylindrical Bore 95x170x32mm - Allow 2-3 Days
Regular price
$772.31
ex VAT
Regular price
Sale price
$772.31
ex VAT
In stock
Price Break
3+
$364.75
4+
$344.26
9+
$340.16
19+
$336.06
29+
$331.96
39+
$327.86
49+
$307.37
59+
$303.27
249+
$299.17
499+
$295.08
999+
$286.88
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 32mm
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 170mm |
| B | 32mm |
| r min | 2.1mm |
| D1 | 152.7mm |
| da min | 107mm |
| Da max | 158mm |
| ra max | 2.1mm |
| Dynamic Load Cr | 208000 N |
| Static Load C0r | 265000 N |
| Fatigue limit load Cur | 26000 N |
| Limiting speed nG | 1900 rpm |
| Weight | 3.19 kg |
