SKU: 20218-K-MB-C3-MB

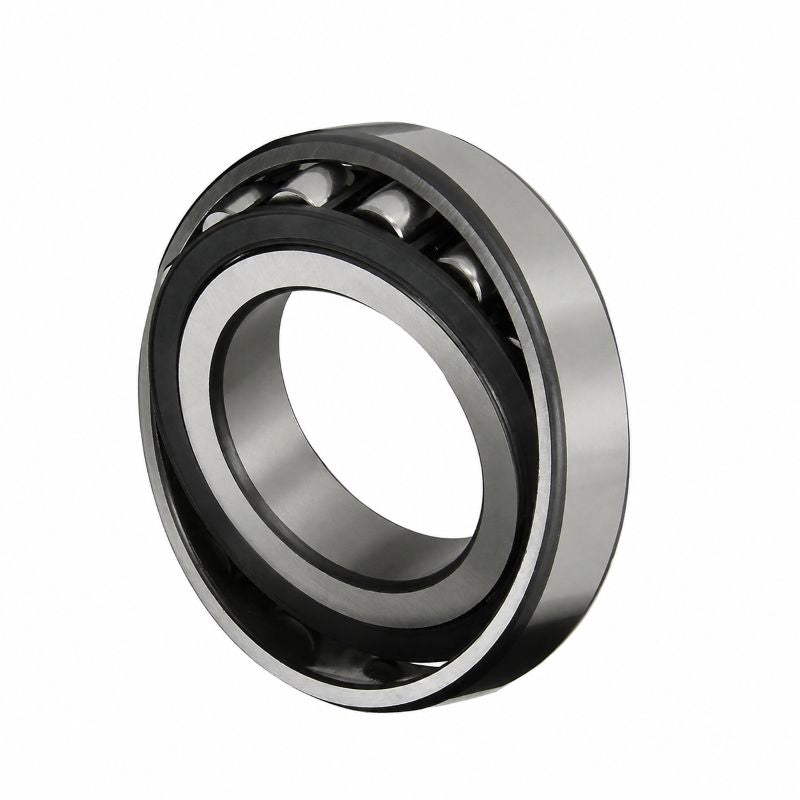

20218KMBC3 Barrel Roller Bearing with Taper Bore 90x160x30mm - Allow 2-3 Days
20218KMBC3 Barrel Roller Bearing with Taper Bore 90x160x30mm - Allow 2-3 Days
Regular price
$682.12
ex VAT
Regular price
Sale price
$682.12
ex VAT
In stock
Price Break
3+
$322.15
4+
$304.06
9+
$300.44
19+
$296.82
29+
$293.20
39+
$289.58
49+
$271.48
59+
$267.86
249+
$264.24
499+
$260.62
999+
$253.38
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Width:
- 30mm
- Clearance:
- C3
Technical
Technical
| d | 90mm |
|---|---|
| D | 160mm |
| B | 30mm |
| r min | 2mm |
| D1 | 143.8mm |
| da min | 101mm |
| Da max | 149mm |
| ra max | 2mm |
| Dynamic load Cr | 173000 N |
| Static load C0r | 220000 N |
| Fatigue limit load Cur | 22000 N |
| Limiting speed nG | 2000 rpm |
| Weight | 2.68 kg |
