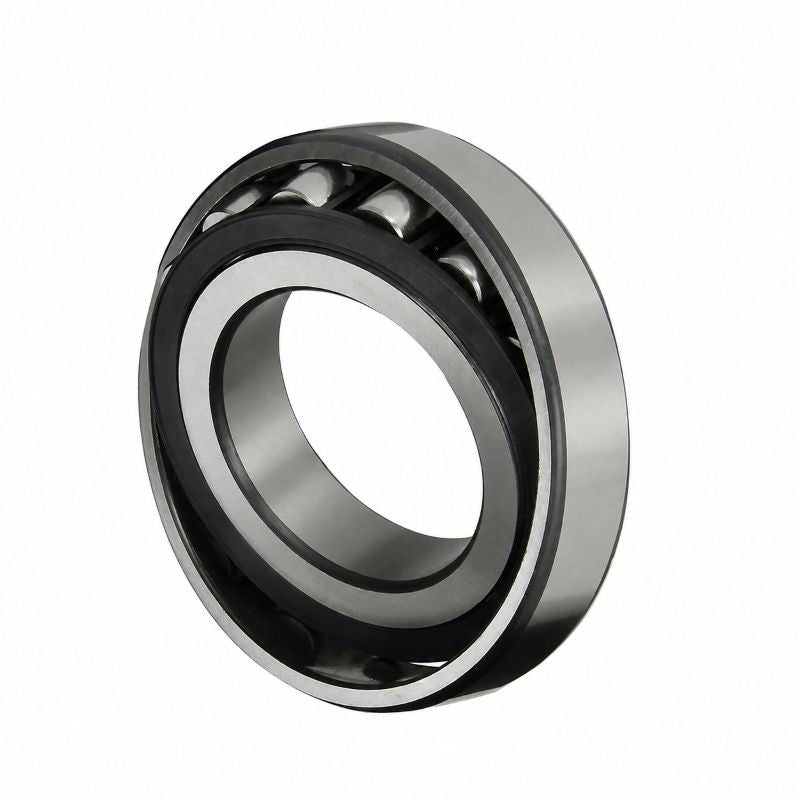

20208KTVPC3 Barrel Roller Bearing with Taper Bore 40x80x18mm
20208KTVPC3 Barrel Roller Bearing with Taper Bore 40x80x18mm
Regular price
$246.46
ex VAT
Regular price
Sale price
$246.46
ex VAT
In stock
Price Break
10+
$219.35
19+
$207.03
29+
$204.56
39+
$202.10
49+
$199.63
74+
$197.17
99+
$184.85
199+
$182.38
249+
$179.92
499+
$177.45
999+
$172.52
Couldn't load pickup availability
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Clearance:
- C3
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 18mm |
| r min | 1.1mm |
| D1 | 70.1mm |
| da min | 47mm |
| Da max | 73mm |
| ra max | 1mm |
| Dynamic load Cr | 49000 N |
| Static load C0r | 53000 N |
| Fatigue limit load Cur | 5000 N |
| Limiting speed nG | 4300 rpm |
| Weight | 0.38 kg |
