SKU: 1AMS-JUB

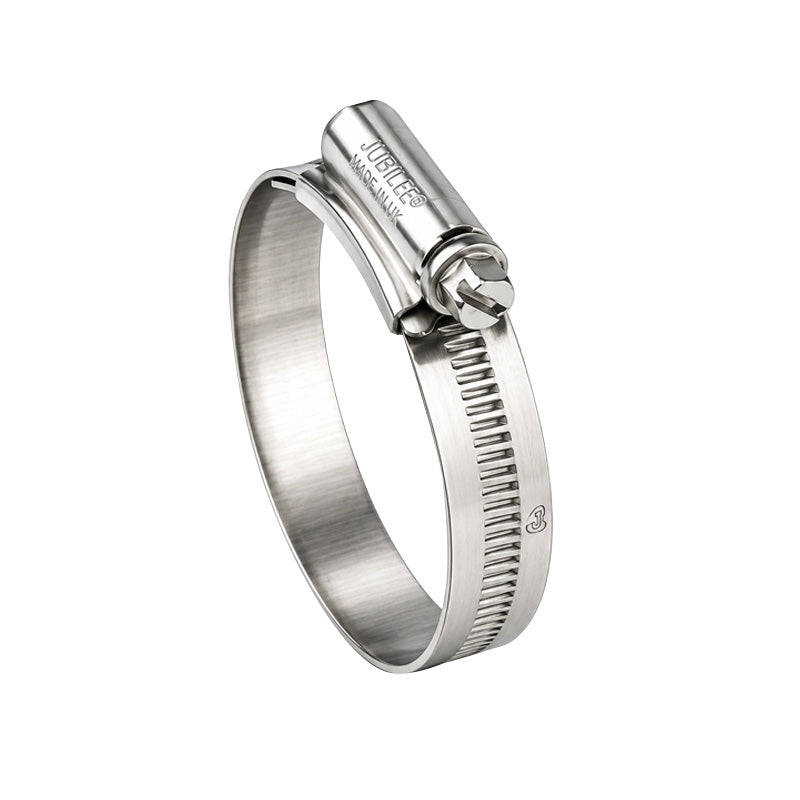

1AMS Zinc Plated Steel Original Jubilee Clip Adjustment Range 22mm-30mm Band Width 13mm
1AMS Zinc Plated Steel Original Jubilee Clip Adjustment Range 22mm-30mm Band Width 13mm
Regular price
$3.58
ex VAT
Regular price
Sale price
$3.58
ex VAT
In stock
Price Break
5+
$2.51
10+
$2.15
20+
$1.97
50+
$1.79
100+
$1.43
500+
$1.25
1000+
$1.07
Couldn't load pickup availability
Description
Description
Zinc Plated Steel Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery industries.
Benefits: Rolled edges provide protection to softer hoses.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 22mm
- Max Adjustment Range:
- 30mm
Technical
Technical
| BS No. | 30 |
|---|---|
| Adjustment Range | 22mm - 30mm |
| Adjustment Range | 7/8 - 1-1/8 inch |
| Band Width (+/- 0.1) | 13mm |
| Band Thickness (+/- 0.1) | 0.914mm |
| Recommended Torque | 5.1Nm |
| Maximum Torque | 6.8Nm |
| Maximum Pressure | 203 Psi |
