SKU: 187L-075-50

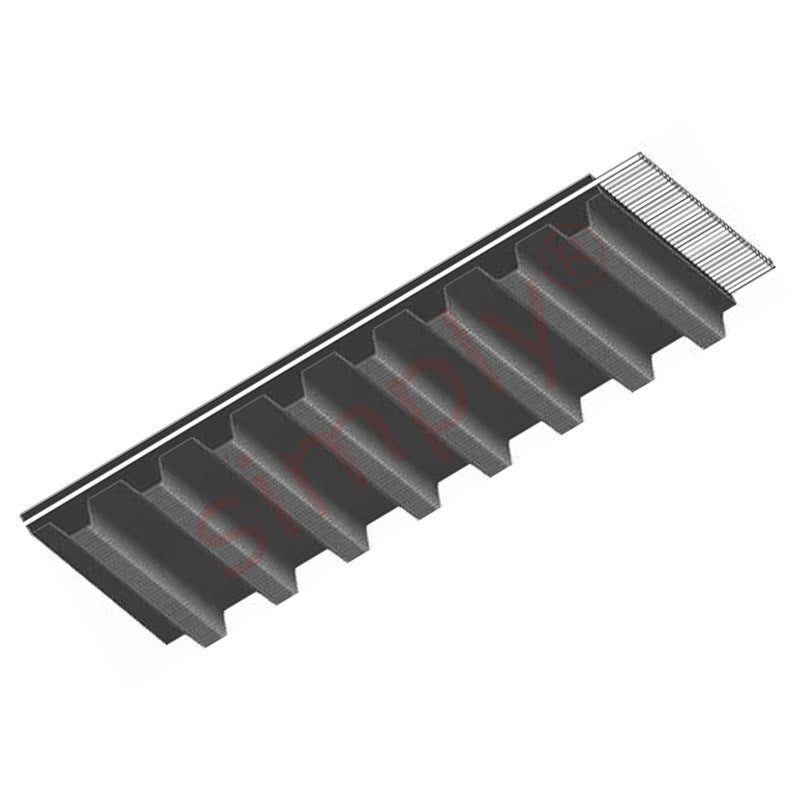

Major Brand 187L075 Synchronous Toothed Belt 0.75 inch Wide 18.75 inch Length 50 Teeth
Major Brand 187L075 Synchronous Toothed Belt 0.75 inch Wide 18.75 inch Length 50 Teeth
Regular price
$14.02
ex VAT
Regular price
Sale price
$14.02
ex VAT
In stock
Price Break
3+
$6.62
5+
$6.25
10+
$6.18
15+
$6.10
20+
$6.03
30+
$5.95
40+
$5.58
50+
$5.51
60+
$5.43
75+
$5.36
100+
$5.21
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 19.05mm = 3/4 inch
- Belt Depth Approx:
- 3.6mm
- Belt Length Approx:
- 476.25mm = 18.75 inch
- Number of Teeth:
- 50
Technical
Technical
| Belt width | 0.75 inch = 19.05mm |
|---|---|
| Pitch length | 18.75 inch = 476.25mm |
| Number of teeth | 50 |
| Tooth pitch t | 0.375 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.07519685 inch |
| Pitch zone u | 0.015 inch |
