SKU: 16B-3-NO12-MB
Branded 16B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
Branded 16B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
Regular price
$14.41
ex VAT
Regular price
Sale price
$14.41
ex VAT
Equivalent to: 16B-3-OL
In stock
Price Break
10+
$12.82
19+
$12.10
29+
$11.96
39+
$11.82
49+
$11.67
74+
$11.53
99+
$10.81
199+
$10.66
249+
$10.52
499+
$10.38
999+
$10.09
Couldn't load pickup availability
Description
Description

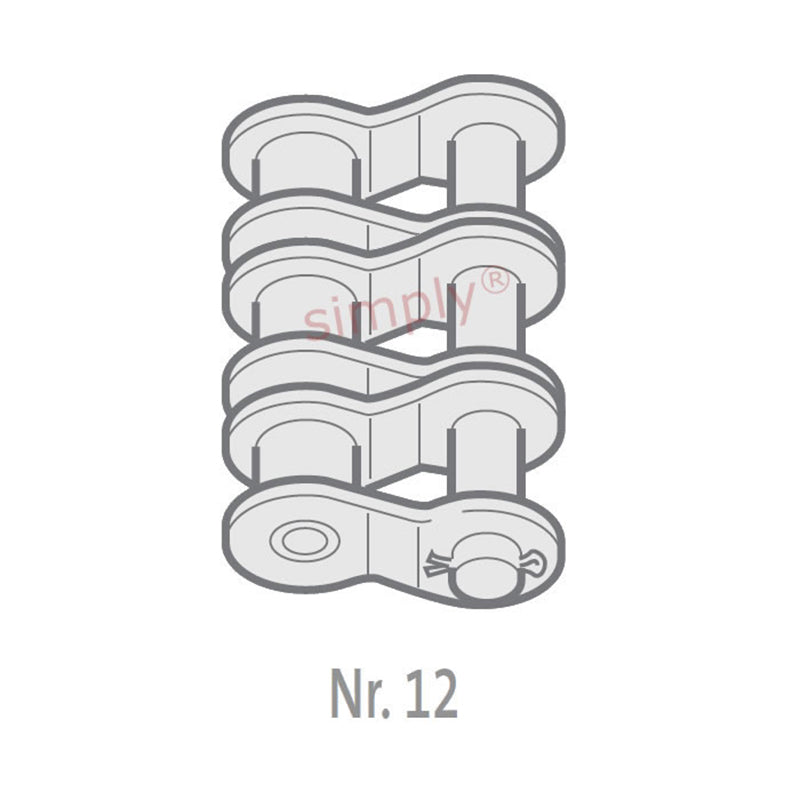

Branded OL / No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 16B-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H3) | 103.2mm |
| Connecting Link Extension max (J) | 3.60000000000001mm |
| ISO606 Tensile Strength min | 173000 N |
| Weight | 0.063kg/m |
