SKU: 16B-1-SYN-NO30-RENOLD
Renold Synergy 16B-1-NO30 BS Simplex Chain Double Cranked Link 1 inch Pitch
Renold Synergy 16B-1-NO30 BS Simplex Chain Double Cranked Link 1 inch Pitch
Regular price
$107.54
ex VAT
Regular price
Sale price
$107.54
ex VAT
In stock
Price Break
10+
$95.71
19+
$90.33
29+
$89.26
39+
$88.18
49+
$87.11
74+
$86.03
99+
$80.66
199+
$79.58
249+
$78.50
499+
$77.43
999+
$75.28
Couldn't load pickup availability
Description
Description

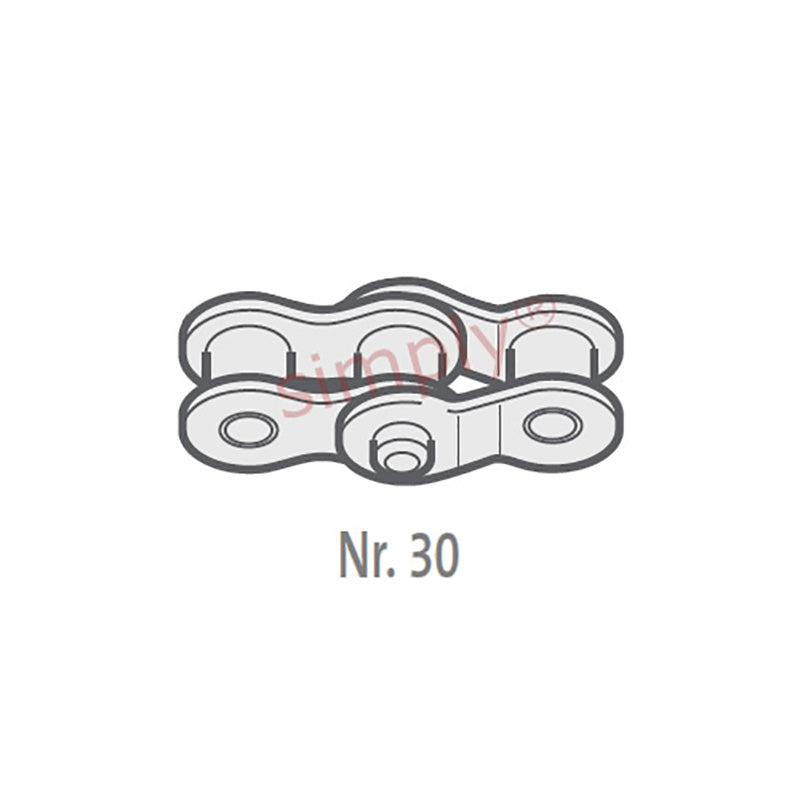

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 4.12mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 34.9mm |
| Connecting Link Extension max (J) | 2.2mm |
| ISO606 Tensile Strength min | 60000 N |
| Weight | 0.067kg/m |
