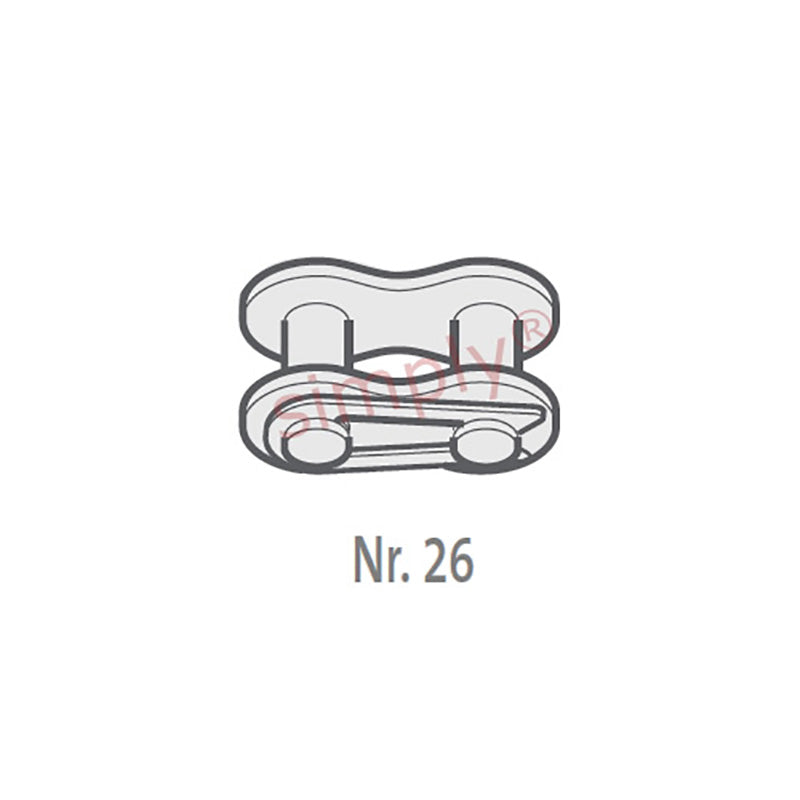

Renold Blue Box 16B-1-NO26 BS Simplex Connecting Link With Spring Clip 1 inch Pitch
Renold Blue Box 16B-1-NO26 BS Simplex Connecting Link With Spring Clip 1 inch Pitch
Regular price
$1,703.79
ex VAT
Regular price
Sale price
$1,703.79
ex VAT
In stock
Price Break
10+
$1,516.37
19+
$1,431.18
29+
$1,414.15
39+
$1,397.11
49+
$1,380.07
74+
$1,363.03
99+
$1,277.84
199+
$1,260.80
249+
$1,243.77
499+
$1,226.73
999+
$1,192.65
Couldn't load pickup availability
Description
Description
| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Chain Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 4.12mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 34.9mm |
| Connecting Link Extension max (J) | 2.2mm |
| ISO606 Tensile Strength min | 60000 N |
| Weight | 0.067kg/m |
