SKU: 16B-1-BB-NO11-RENOLD

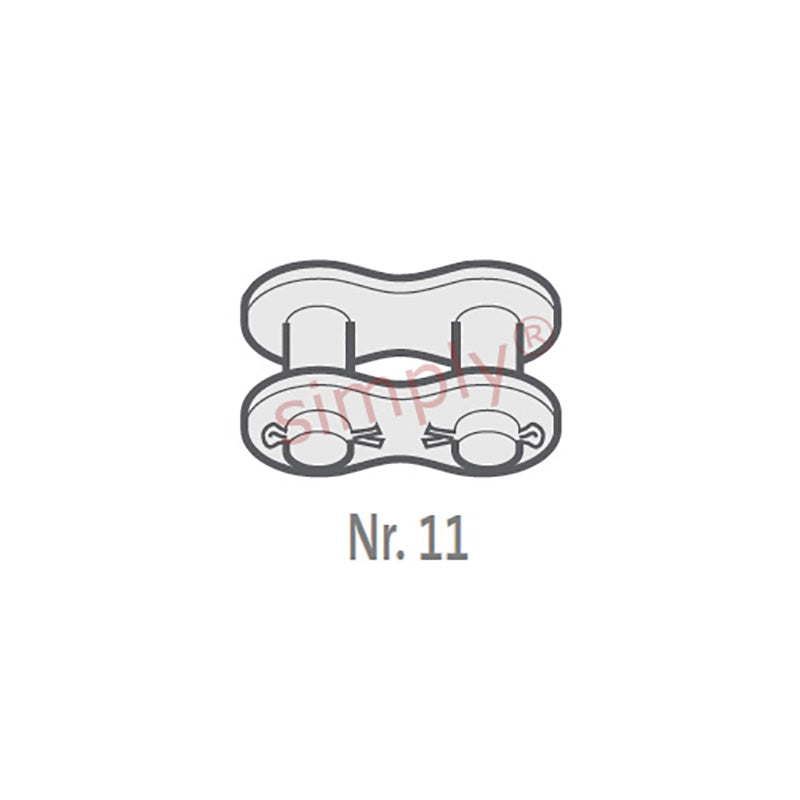

Renold Blue Box 16B-1-NO11 BS Simplex Cottered Connecting Link 1 inch Pitch
Renold Blue Box 16B-1-NO11 BS Simplex Cottered Connecting Link 1 inch Pitch
Regular price
$25.40
ex VAT
Regular price
Sale price
$25.40
ex VAT
In stock
Price Break
2+
$11.99
5+
$11.32
10+
$11.18
29+
$11.05
49+
$10.92
75+
$10.78
100+
$10.11
200+
$9.97
250+
$9.84
500+
$9.70
1000+
$9.43
Description
Description
| Renold No. 11 European (BS) Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 4.12mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 34.9mm |
| Connecting Link Extension max (J) | 2.2mm |
| ISO606 Tensile Strength min | 60000 N |
| Weight | 0.06kg/m |
