SKU: 160-3-SD-NO11-RENOLD
Renold SD 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
Renold SD 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
$196.91
ex VAT
Regular price
Sale price
$196.91
ex VAT
In stock
Price Break
2+
$93.00
5+
$87.77
10+
$86.73
29+
$85.68
49+
$84.64
75+
$83.59
100+
$78.37
200+
$77.32
250+
$76.28
500+
$75.23
1000+
$73.14
Description
Description

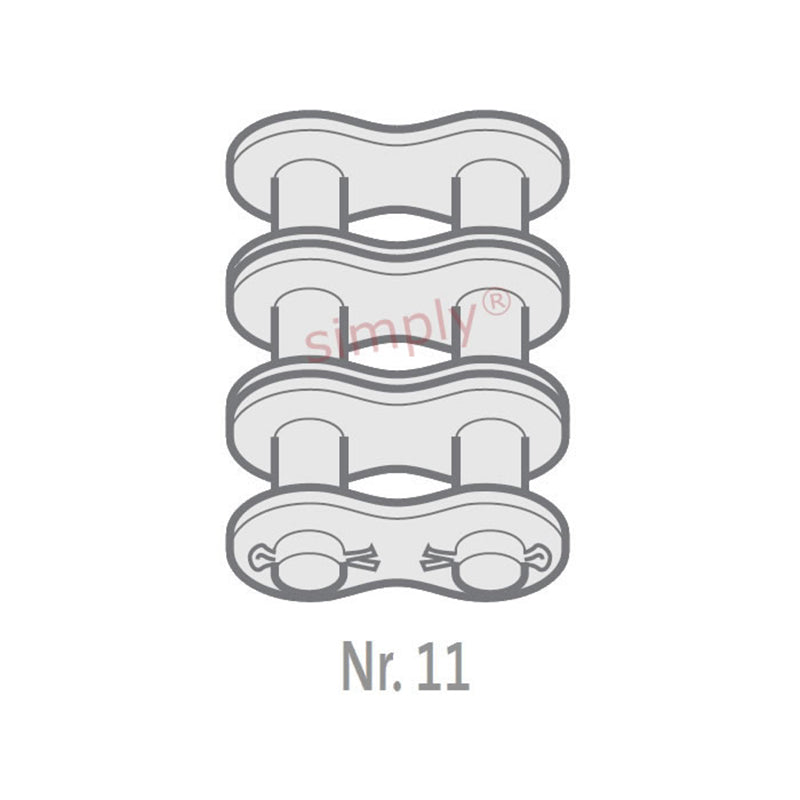

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.2mm |
| Pin Length max (H1) | 170.5mm |
| Connecting Link Extension max (J) | 16.8mm |
| ISO606 Tensile Strength min | 669000 N |
| Weight | 58.55kg/m |
