Renold SD 160-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
Renold SD 160-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
Regular price
$256.73
ex VAT
Regular price
Sale price
$256.73
ex VAT
In stock
Price Break
10+
$228.49
19+
$215.65
29+
$213.09
39+
$210.52
49+
$207.95
74+
$205.38
99+
$192.55
199+
$189.98
249+
$187.41
499+
$184.85
999+
$179.71
Couldn't load pickup availability
Description
Description

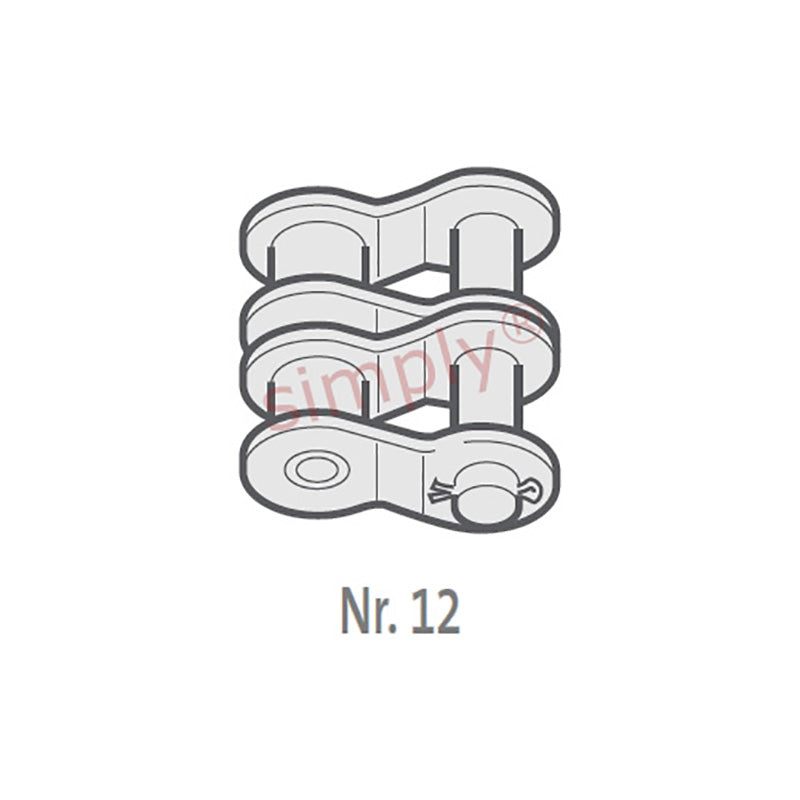

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.27mm |
| Pin Length max (H2) | 122.9mm |
| Connecting Link Extension max (J) | 5.19999999999999mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 446000 N |
| Weight | 0.87kg/m |
