SKU: 160-1-SD-NO11-RENOLD
Renold SD 160-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 2 inch Pitch
Renold SD 160-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
$71.95
ex VAT
Regular price
Sale price
$71.95
ex VAT
In stock
Price Break
2+
$33.98
5+
$32.07
10+
$31.69
29+
$31.31
49+
$30.92
75+
$30.54
100+
$28.63
200+
$28.25
250+
$27.87
500+
$27.49
1000+
$26.73
Description
Description

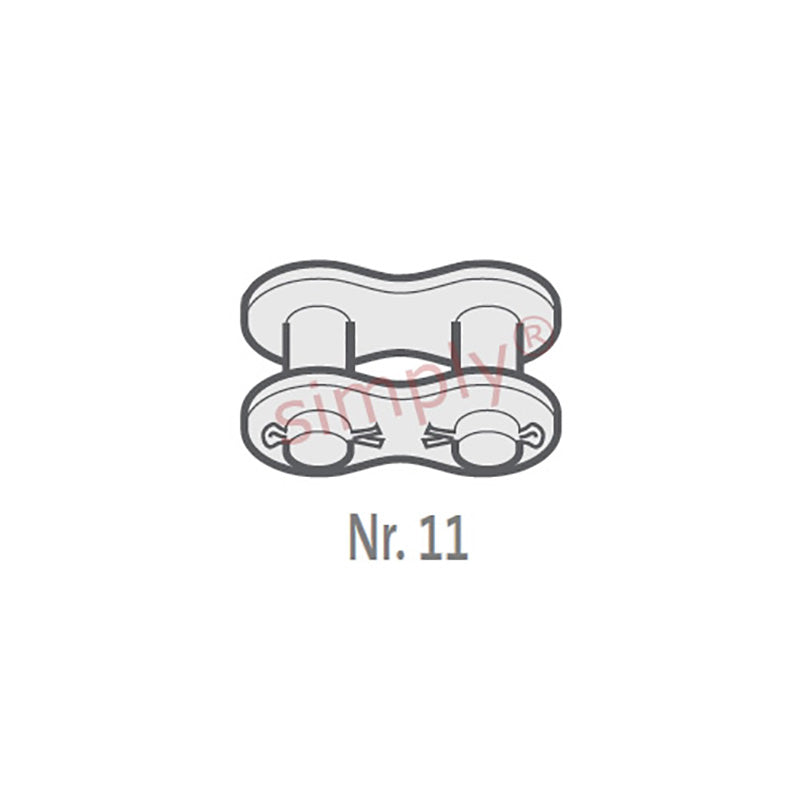

| Renold No. 11 ANSI Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.2mm |
| Pin Length max (H1) | 64.3mm |
| Connecting Link Extension max (J) | 5.60000000000001mm |
| ISO606 Tensile Strength min | 223000 N |
| Weight | 0.45kg/m |
