SKU: 140-3-SD-NO11-RENOLD
Renold SD 140-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Renold SD 140-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Regular price
$164.34
ex VAT
Regular price
Sale price
$164.34
ex VAT
In stock
Price Break
2+
$77.62
5+
$73.26
10+
$72.38
29+
$71.51
49+
$70.64
75+
$69.77
100+
$65.41
200+
$64.53
250+
$63.66
500+
$62.79
1000+
$61.05
Description
Description

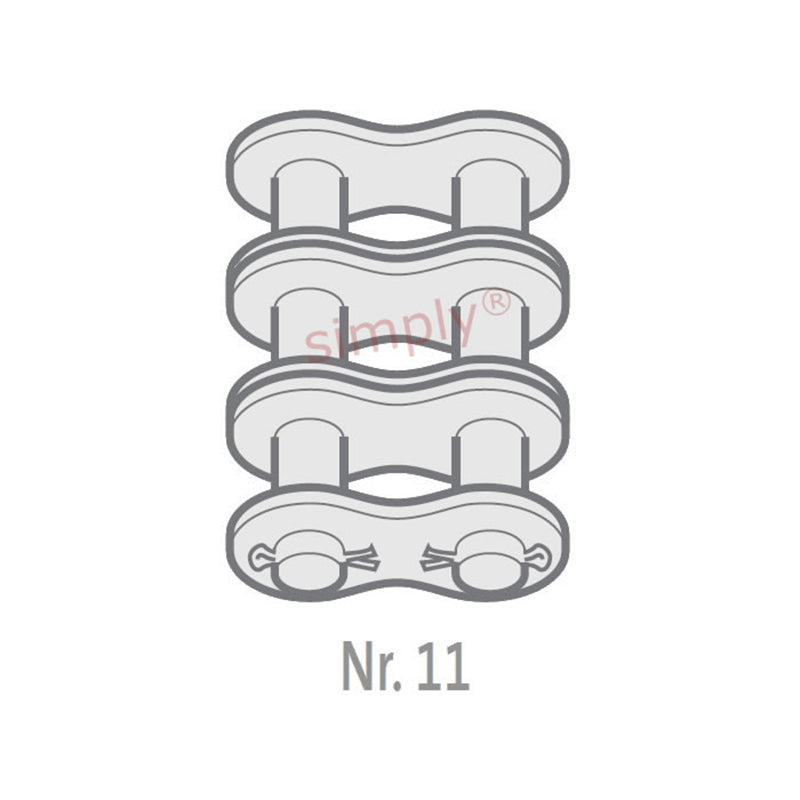

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42mm |
| Plate Width Inner max (E) | 5.6mm |
| Plate Width Outer max (F) | 5.6mm |
| Pin Diameter max (G) | 12.7mm |
| Pin Length max (H1) | 143.4mm |
| Connecting Link Extension max (J) | 14.4mm |
| ISO606 Tensile Strength min | 510000 N |
| Weight | 48.87kg/m |
