SKU: 1310K-EU

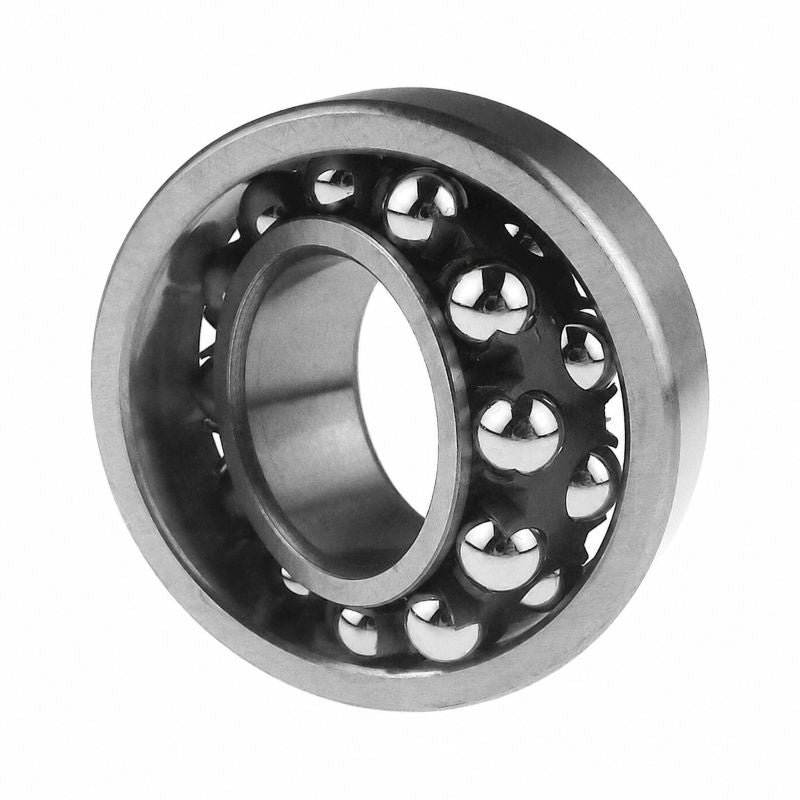

1310K Budget Open Self Aligning Ball Bearing with Taper Bore 50x110x27mm

1310K Budget Open Self Aligning Ball Bearing with Taper Bore 50x110x27mm
Regular price $45.13 ex VAT
Regular price Sale price $45.13 ex VAT
Sale Sold out

Equivalent to: 1310EK

In stock

Price Break
10+ $21.32
19+ $20.12
29+ $19.88
39+ $19.64
49+ $19.40
74+ $19.16
99+ $17.96
199+ $17.72
249+ $17.48
499+ $17.24
999+ $16.77
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
d 50mm
D 110mm
B 27mm
D1 95mm
d1d2 70.3mm
r1r2 2mm
da min 61mm
Da max 99mm
ra max 2mm
--- Calculation Data
C 43.6kN
Co 1411.2
Pu 0.72kN
ref 12000rpm
limit 8000rpm
e 0.24
Y1 2.6
Y2 4.1
Y0 2.8
--- Weights
kg 1.2
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H310+sleeve>H310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS310+sleeve>HS310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA310+sleeve>HA310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE310+sleeve>HE310</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX310+sleeve>AHX310</a>
