SKU: 12B-3-SD-NO12-RENOLD
Renold SD 12B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Renold SD 12B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Regular price
$15.57
ex VAT
Regular price
Sale price
$15.57
ex VAT
In stock
Price Break
2+
$7.35
5+
$6.94
10+
$6.86
29+
$6.77
49+
$6.69
75+
$6.61
100+
$6.20
200+
$6.11
250+
$6.03
500+
$5.95
1000+
$5.78
Description
Description

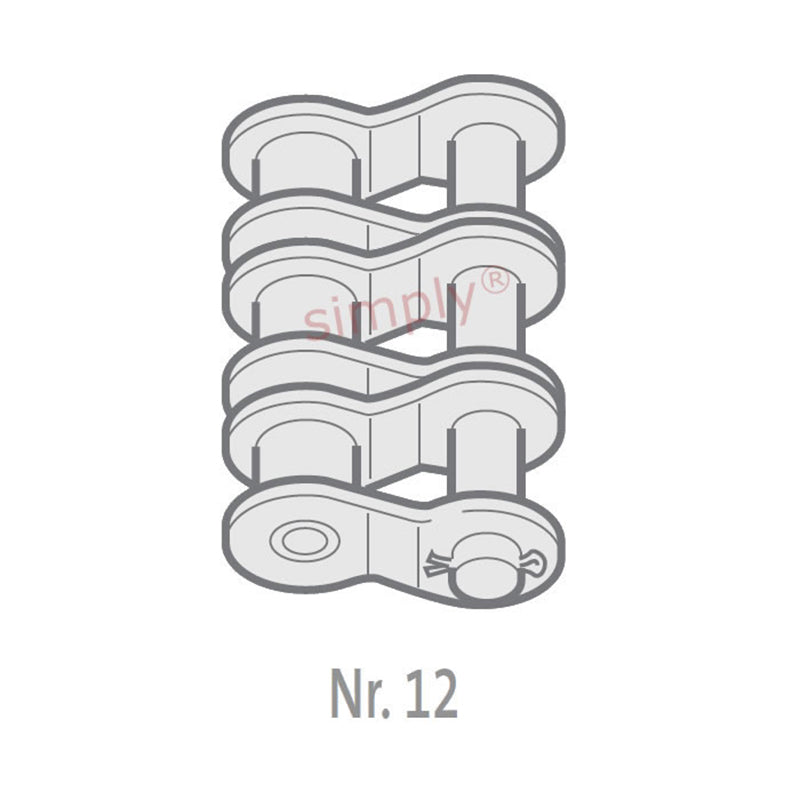

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H1) | 61.5mm |
| Connecting Link Extension max (J) | 4.5mm |
| ISO606 Tensile Strength min | 86700 N |
| Weight | 0.023kg/m |
