SKU: 1210K-EU

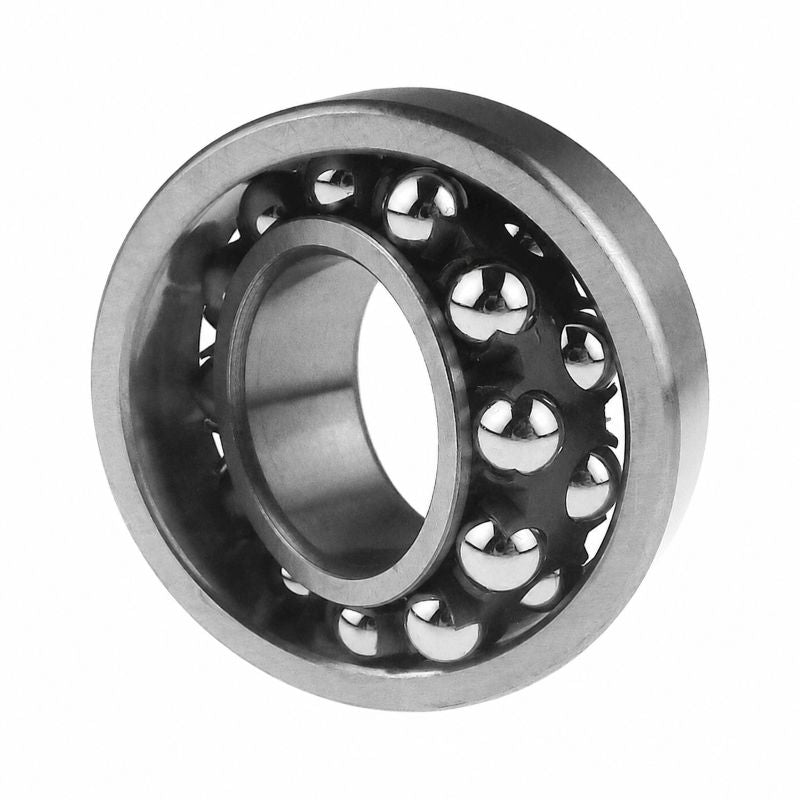

1210K Budget Open Self Aligning Ball Bearing with Taper Bore 50x90x20mm

1210K Budget Open Self Aligning Ball Bearing with Taper Bore 50x90x20mm
Regular price $18.39 ex VAT
Regular price Sale price $18.39 ex VAT
Sale Sold out

Equivalent to: 1210EK

In stock

Price Break
10+ $8.69
19+ $8.20
29+ $8.10
39+ $8.00
49+ $7.91
74+ $7.81
99+ $7.32
199+ $7.22
249+ $7.12
499+ $7.03
999+ $6.83
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
d 50mm
D 90mm
B 20mm
D1 79.5mm
d1d2 61.7mm
r1r2 1.1mm
da min 57mm
Da max 83mm
ra max 1mm
--- Calculation Data
C 26.5kN
Co 9.1519.3
Pu 0.48kN
ref 16000rpm
limit 10000rpm
e 0.21
Y1 3
Y2 4.6
Y0 3.2
--- Weights
kg 0.53
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H210+sleeve>H210</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS210+sleeve>HS210</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA210+sleeve>HA210</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE210+sleeve>HE210</a>
