SKU: 120-2-NO11-RENOLD
Renold 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Renold 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
$28.23
ex VAT
Regular price
Sale price
$28.23
ex VAT
In stock
Price Break
10+
$25.12
19+
$23.71
29+
$23.43
39+
$23.15
49+
$22.87
74+
$22.58
99+
$21.17
199+
$20.89
249+
$20.61
499+
$20.33
999+
$19.76
Couldn't load pickup availability
Description
Description

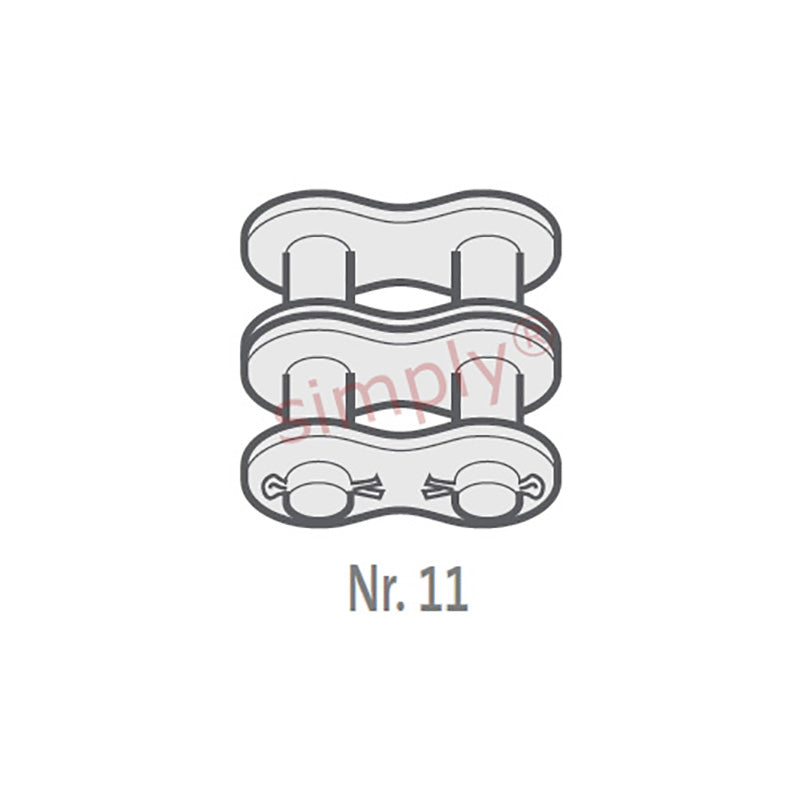

Branded COT / No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.1mm |
| Plate Width Inner max (E) | 4.7mm |
| Plate Width Outer max (F) | 4.7mm |
| Pin Diameter max (G) | 11.1mm |
| Pin Length max (H2) | 95.4mm |
| Connecting Link Extension max (J) | 4.3mm |
| Transverse Pitch nom (K) | 45.44mm |
| ISO606 Tensile Strength min | 250000 N |
| Weight | 0.156kg/m |
