SKU: 120-2-BB-NO12-RENOLD
Renold Blue Box 120-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Renold Blue Box 120-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Regular price
$331.93
ex VAT
Regular price
Sale price
$331.93
ex VAT
In stock
Price Break
2+
$156.76
5+
$147.95
10+
$146.19
29+
$144.43
49+
$142.67
75+
$140.91
100+
$132.10
200+
$130.34
250+
$128.58
500+
$126.82
1000+
$123.29
Description
Description

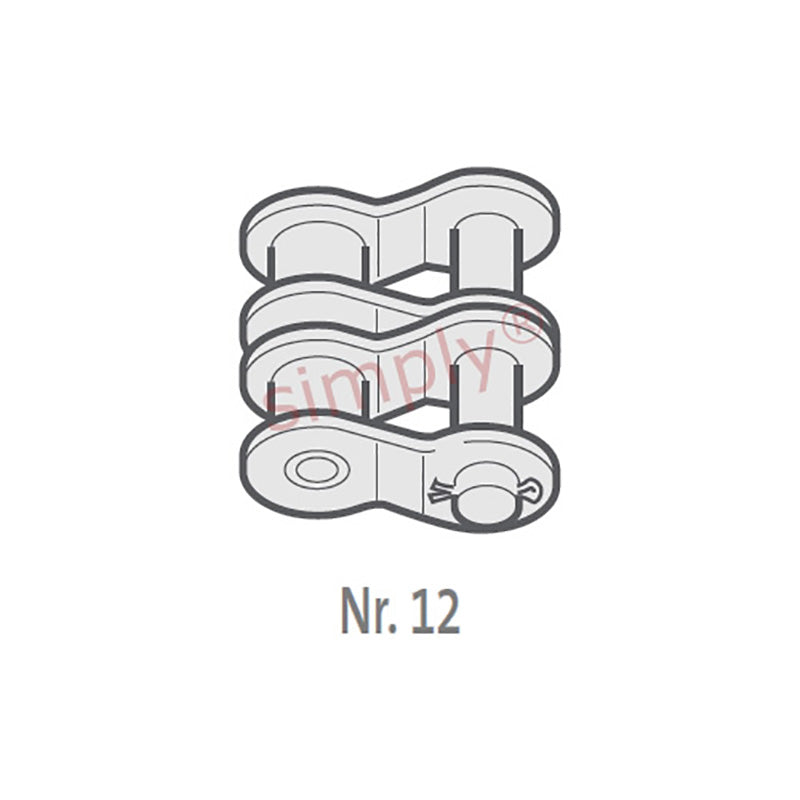

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.2mm |
| Plate Width Inner max (E) | 4.8mm |
| Plate Width Outer max (F) | 4.8mm |
| Pin Diameter max (G) | 11.11mm |
| Pin Length max (H2) | 94.7mm |
| Connecting Link Extension max (J) | 5.3mm |
| Transverse Pitch nom (K) | 45.44mm |
| ISO606 Tensile Strength min | 250000 N |
| Weight | 0.15kg/m |
