SKU: 120-1-NO11-MB
Branded 120-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Branded 120-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
$14.96
ex VAT
Regular price
Sale price
$14.96
ex VAT
Equivalent to: 120-1-CL-COT 120-1-CL
In stock
Price Break
2+
$7.07
5+
$6.67
10+
$6.59
29+
$6.51
49+
$6.43
75+
$6.35
100+
$5.96
200+
$5.88
250+
$5.80
500+
$5.72
1000+
$5.56
Description
Description

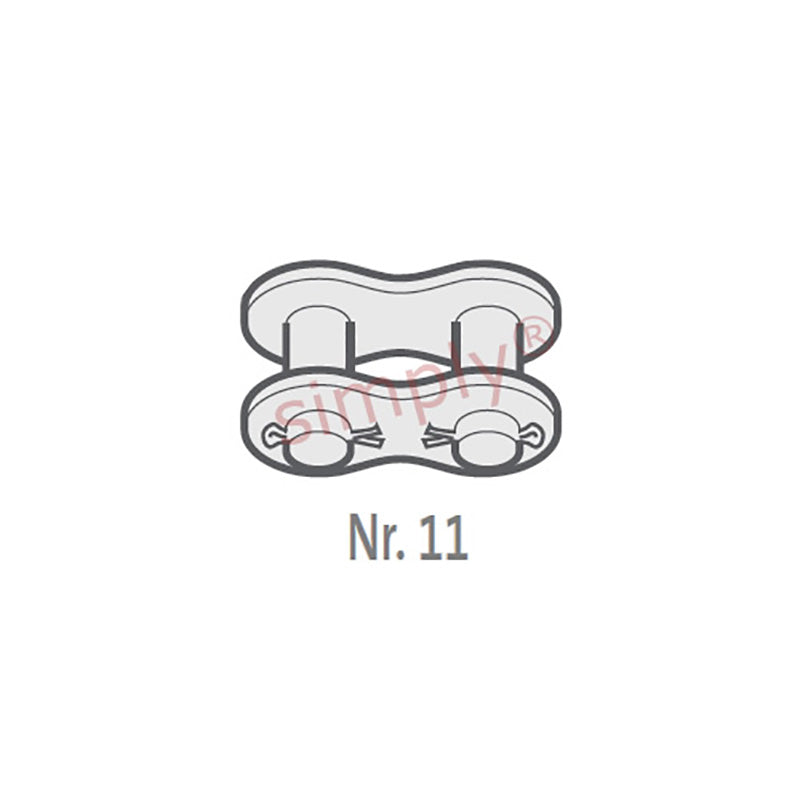

Branded COT / No. 11 ANSI Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 120-1-CL-COT 120-1-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.1mm |
| Plate Width Inner max (E) | 4.7mm |
| Plate Width Outer max (F) | 4.7mm |
| Pin Diameter max (G) | 11.1mm |
| Pin Length max (H1) | 50.45mm |
| Connecting Link Extension max (J) | 2.95mm |
| ISO606 Tensile Strength min | 125000 N |
| Weight | 0.079kg/m |
