SKU: 1120-20CG-RHP

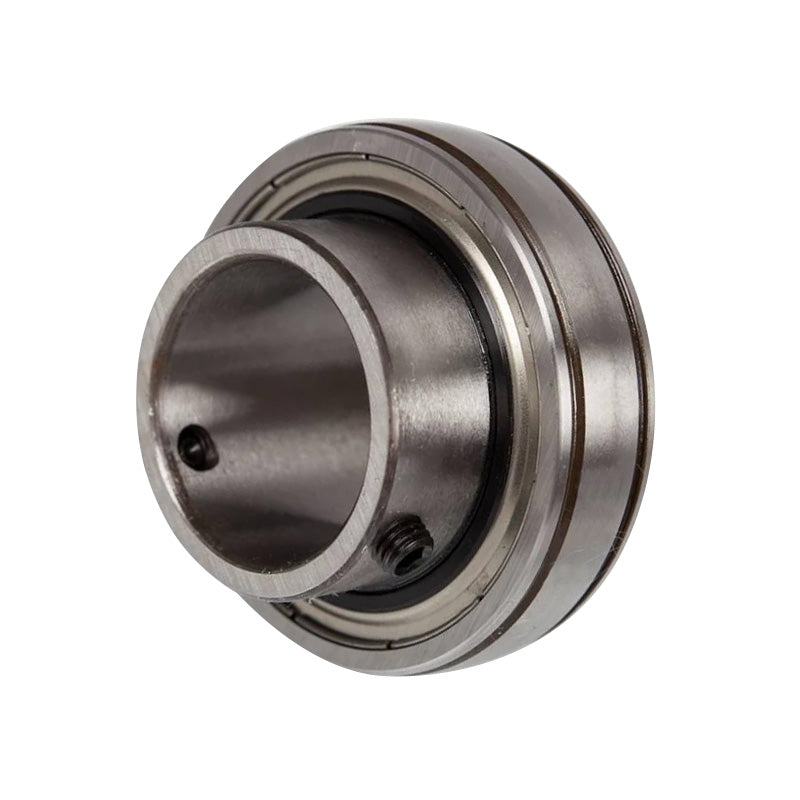

RHP 1120-20CG Full Width Snap Ring Grub Screw Bearing Insert 20mm Bore 47mm Outside Diameter
RHP 1120-20CG Full Width Snap Ring Grub Screw Bearing Insert 20mm Bore 47mm Outside Diameter
Regular price
$41.73
ex VAT
Regular price
Sale price
$41.73
ex VAT
In stock
Price Break
10+
$37.14
19+
$35.05
29+
$34.64
39+
$34.22
49+
$33.80
74+
$33.38
99+
$31.30
199+
$30.88
249+
$30.46
499+
$30.05
999+
$29.21
Couldn't load pickup availability
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- 1120
- Type:
- Parallel Outer
Technical
Technical
| Bore | 20mm |
|---|---|
| D | 47mm |
| D1 | 52.68mm |
| C | 15.88mm |
| C1 | 2.39mm |
| C2 | 4.17mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| f | 1.12mm |
| M | 5.35mm |
| r | 1mm |
| r1 | 0.5mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.23 kg |
