SKU: 10B-3-BB-NO12-RENOLD
Renold Blue Box 10B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Renold Blue Box 10B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Regular price
$14.57
ex VAT
Regular price
Sale price
$14.57
ex VAT
In stock
Price Break
10+
$12.97
19+
$12.24
29+
$12.09
39+
$11.95
49+
$11.80
74+
$11.66
99+
$10.93
199+
$10.78
249+
$10.64
499+
$10.49
999+
$10.20
Couldn't load pickup availability
Description
Description

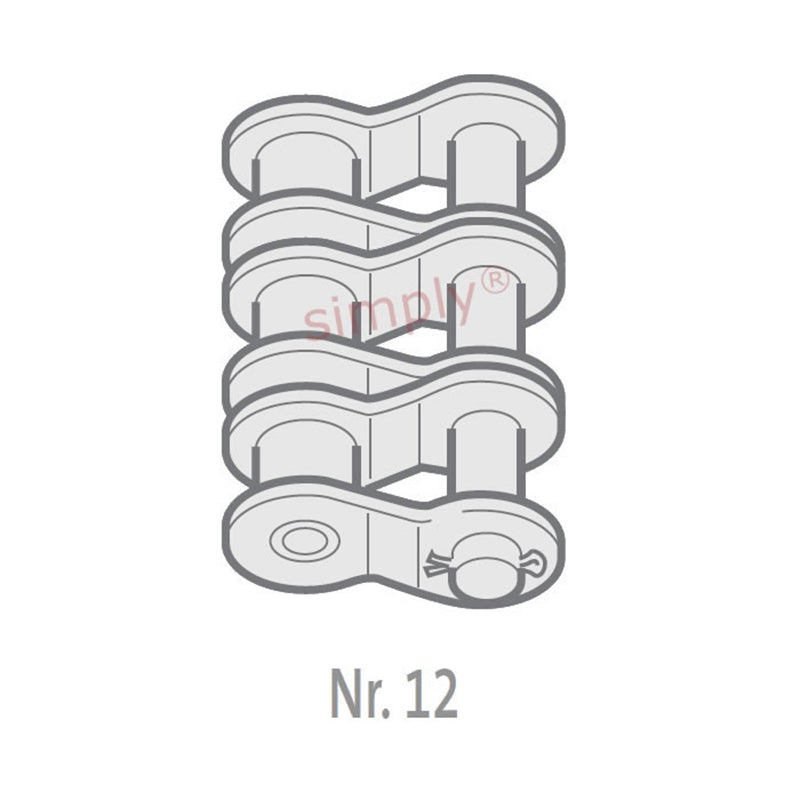

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 52mm |
| Connecting Link Extension max (J) | 2.5mm |
| Transverse Pitch nom (K) | 16.59mm |
| ISO606 Tensile Strength min | 66700 N |
| Weight | 0.009kg/m |
