SKU: 10B-3-BB-NO11-RENOLD
Renold Blue Box 10B-3-NO11 BS Triplex Chain Cottered Connecting Link 5/8 inch Pitch
Renold Blue Box 10B-3-NO11 BS Triplex Chain Cottered Connecting Link 5/8 inch Pitch
Regular price
$16.38
ex VAT
Regular price
Sale price
$16.38
ex VAT
In stock
Price Break
2+
$7.73
5+
$7.30
10+
$7.21
29+
$7.13
49+
$7.04
75+
$6.95
100+
$6.52
200+
$6.43
250+
$6.34
500+
$6.26
1000+
$6.08
Description
Description

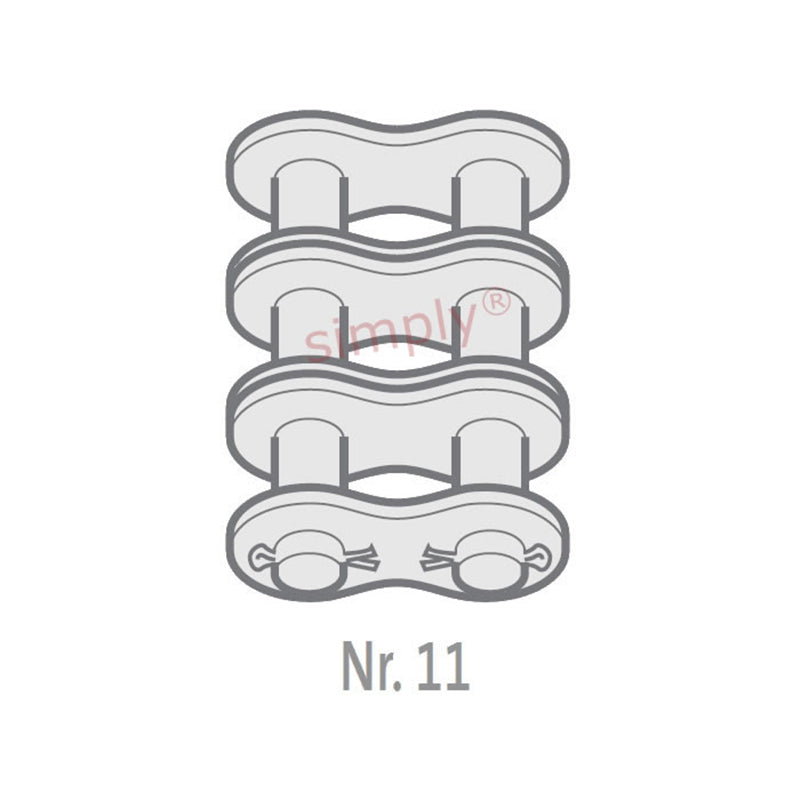

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 52mm |
| Connecting Link Extension max (J) | 2.5mm |
| Transverse Pitch nom (K) | 16.59mm |
| ISO606 Tensile Strength min | 66700 N |
| Weight | 0.009kg/m |
