SKU: 10B-1-SYN-NO26-RENOLD

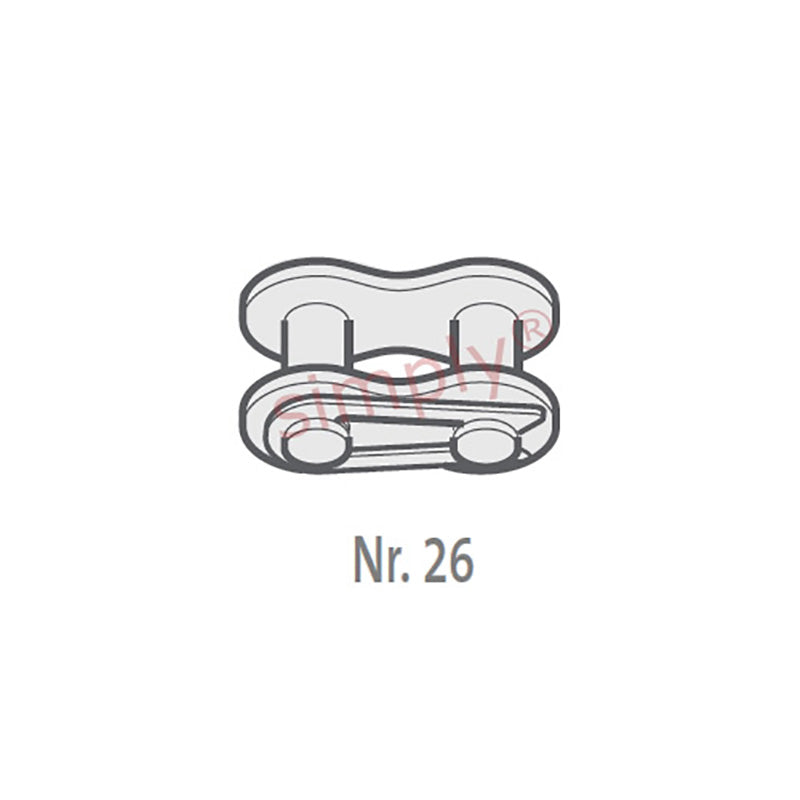

Renold Synergy 10B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Renold Synergy 10B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
$20.35
ex VAT
Regular price
Sale price
$20.35
ex VAT
In stock
Price Break
2+
$9.61
5+
$9.07
10+
$8.97
29+
$8.86
49+
$8.75
75+
$8.64
100+
$8.10
200+
$7.99
250+
$7.89
500+
$7.78
1000+
$7.56
Description
Description
| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 18.8mm |
| Connecting Link Extension max (J) | 2.5mm |
| ISO606 Tensile Strength min | 22200 N |
| Weight | 0.005kg/m |
