SKU: 10B-1-SD-NO11-RENOLD
Renold SD 10B-1-NO11 BS Simplex Chain Cottered Connecting Link 5/8 inch Pitch
Renold SD 10B-1-NO11 BS Simplex Chain Cottered Connecting Link 5/8 inch Pitch
Regular price
$7.57
ex VAT
Regular price
Sale price
$7.57
ex VAT
In stock
Price Break
10+
$6.74
19+
$6.36
29+
$6.28
39+
$6.21
49+
$6.13
74+
$6.06
99+
$5.68
199+
$5.60
249+
$5.53
499+
$5.45
999+
$5.30
Couldn't load pickup availability
Description
Description

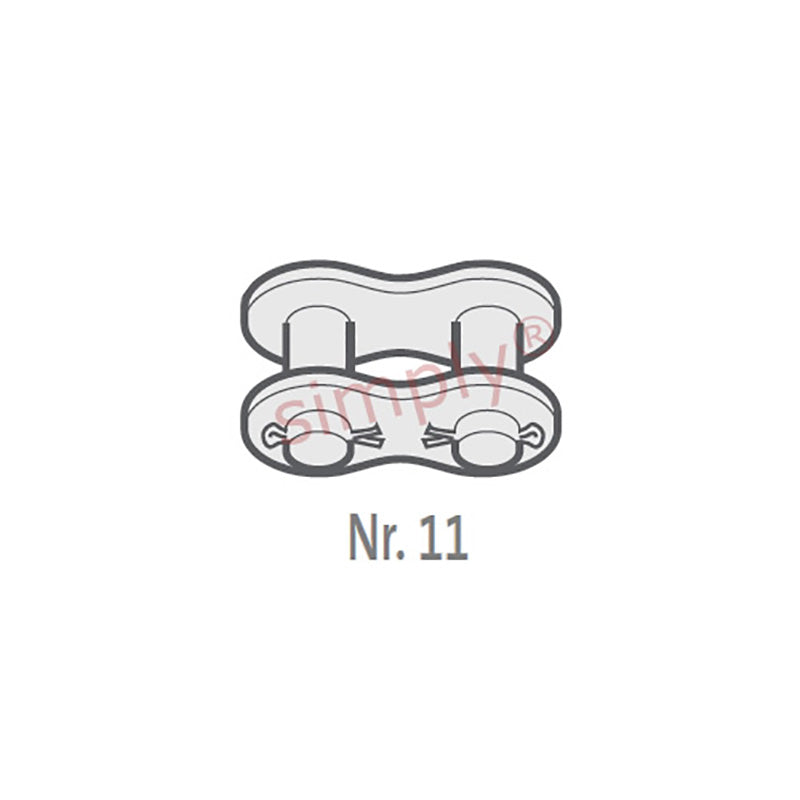

| Renold No. 11 European (BS) Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 19.6mm |
| Connecting Link Extension max (J) | 1.4mm |
| ISO606 Tensile Strength min | 22200 N |
| Weight | 0.13kg/m |
