Branded 10B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Branded 10B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Regular price
$7.70
ex VAT
Regular price
Sale price
$7.70
ex VAT
Equivalent to: 10B-1-OL
In stock
Price Break
10+
$6.85
19+
$6.47
29+
$6.39
39+
$6.31
49+
$6.24
74+
$6.16
99+
$5.78
199+
$5.70
249+
$5.62
499+
$5.54
999+
$5.39
Couldn't load pickup availability
Description
Description

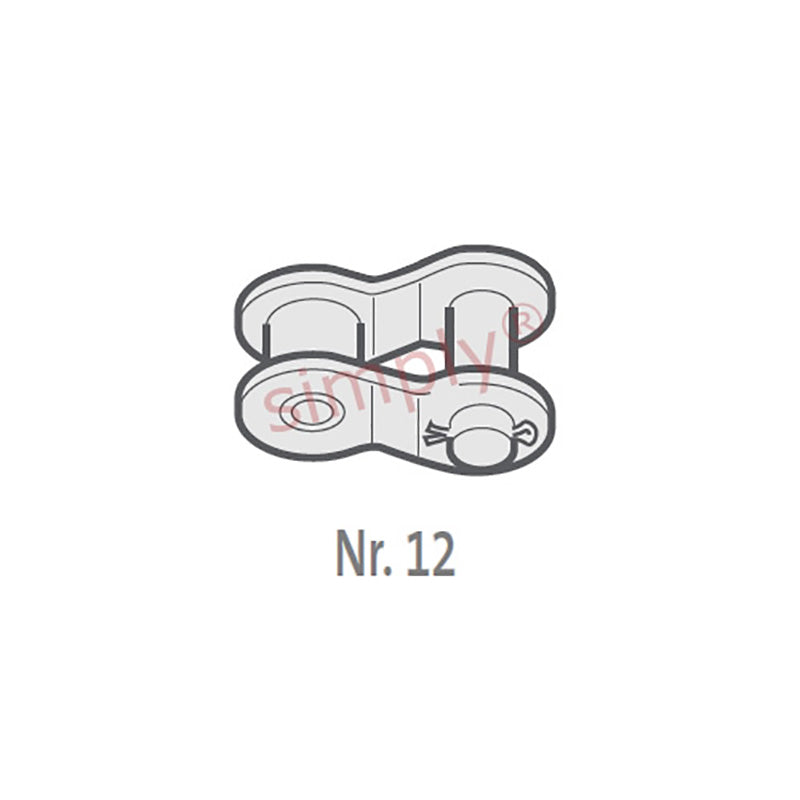

Branded OL / No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 10B-1-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 19.6mm |
| Connecting Link Extension max (J) | 1.4mm |
| ISO606 Tensile Strength min | 22200 N |
| Weight | 0.009kg/m |
