SKU: 1055-2DECG-RHP

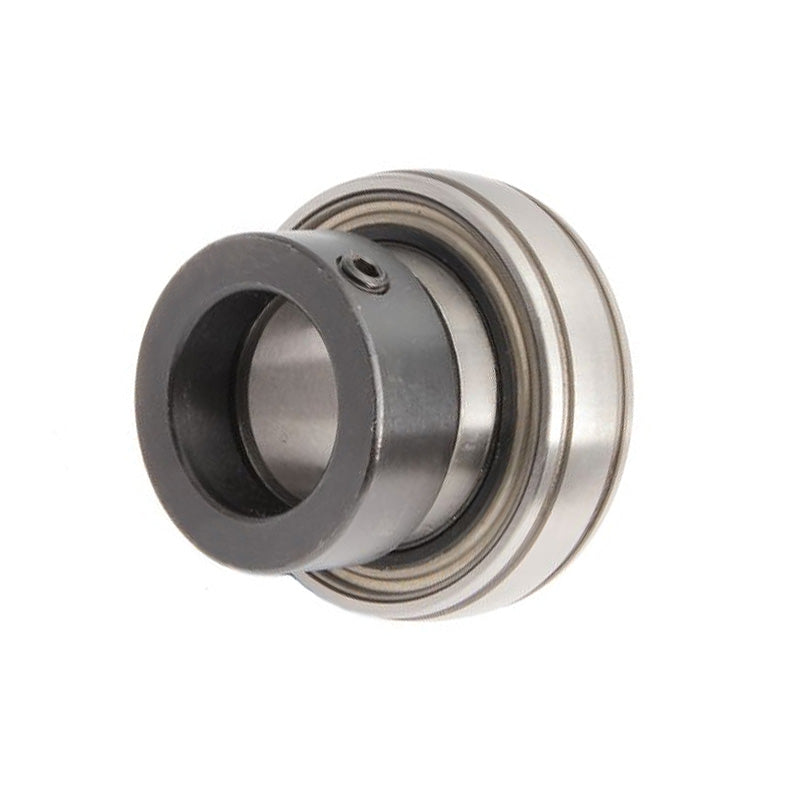

RHP 1055-2DECG Spherical Outer Full Width Bearing Insert 2 inch Bore 100mm Outside Diameter
RHP 1055-2DECG Spherical Outer Full Width Bearing Insert 2 inch Bore 100mm Outside Diameter
Regular price
$121.27
ex VAT
Regular price
Sale price
$121.27
ex VAT
In stock
Price Break
10+
$57.27
20+
$54.05
30+
$53.41
40+
$52.77
50+
$52.12
75+
$51.48
100+
$48.26
200+
$47.62
250+
$46.98
500+
$46.33
1000+
$45.05
Share this product
Description
Description
|
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 100mm
- Style:
- 1055
Technical
Technical
| Bore | 2 inch |
|---|---|
| D | 3.937 inch |
| C | 0.827 inch |
| B3 | 2.813 inch |
| s2 | 1.095 inch |
| d2 | 3 inch |
| r | 0.059 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 1.4 kg |
