SKU: 1020-20GHLT-RHP

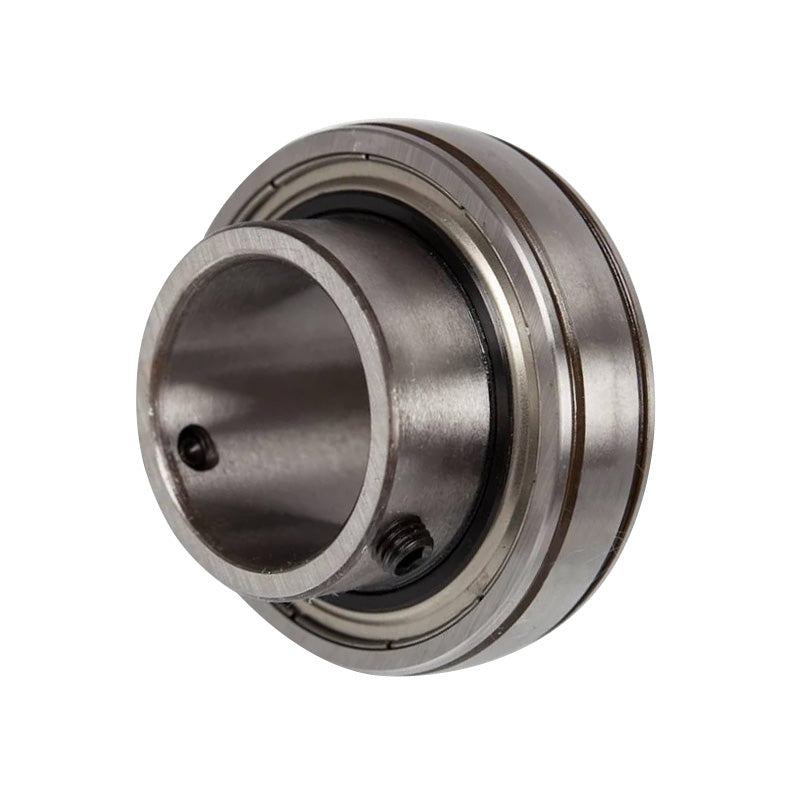

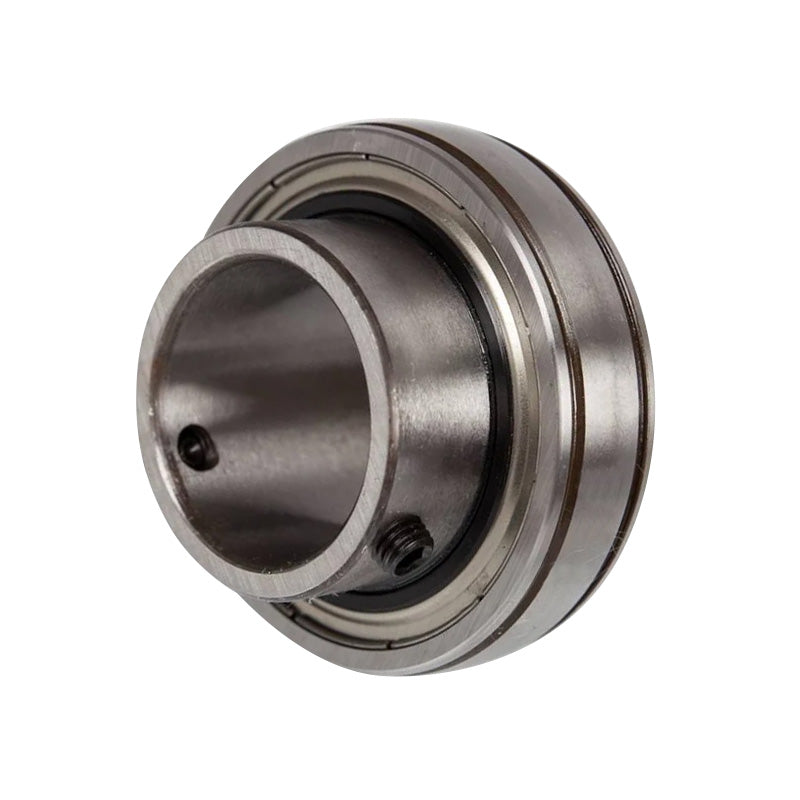

RHP 1020-20GHLT Spherical Outer Full Width Bearing Insert 20mm Bore 47mm Outside Diameter High to Low Temperature
RHP 1020-20GHLT Spherical Outer Full Width Bearing Insert 20mm Bore 47mm Outside Diameter High to Low Temperature
Regular price
$42.76
ex VAT
Regular price
Sale price
$42.76
ex VAT
In stock
Price Break
10+
$20.19
20+
$19.06
30+
$18.83
40+
$18.60
50+
$18.38
75+
$18.15
100+
$17.01
200+
$16.79
250+
$16.56
500+
$16.33
1000+
$15.88
Description
Description
|
RHP 1000 GHLT Series: Full width bearing insert with relubrication facility and a high/low temperature bearing insert. The Bearing has a spherical outer race and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. The GHLT series has a wide operating temperature range from -40 deg to +180 deg C. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, High/Low Temperature, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- 1020
Technical
Technical
| Bore | 20mm |
|---|---|
| D | 47mm |
| C | 14mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| M | 5.35mm |
| r | 1mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.13 kg |
