SKU: 100ASPZ2-ALUM

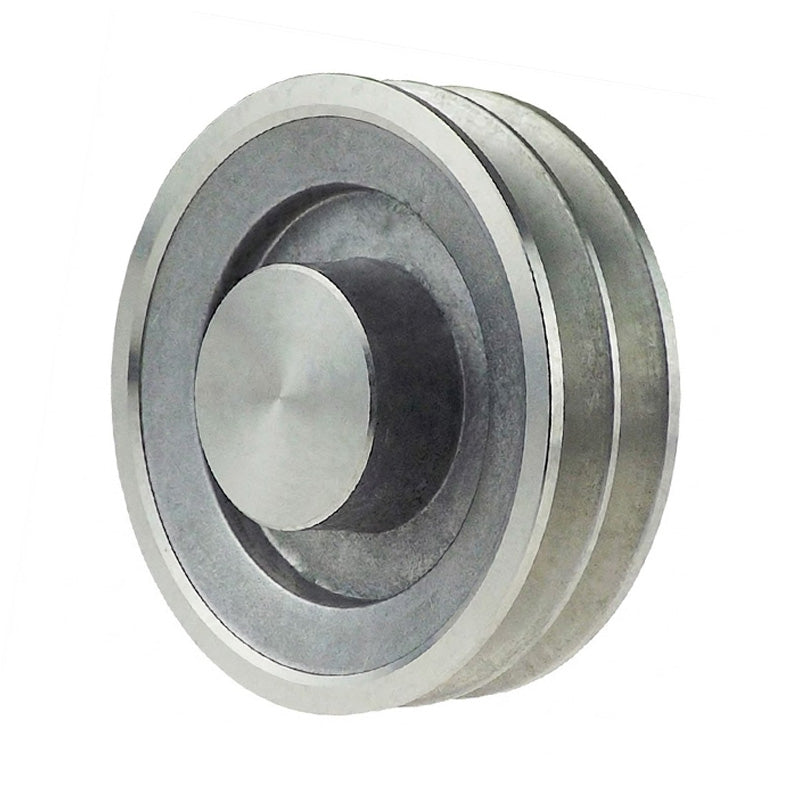

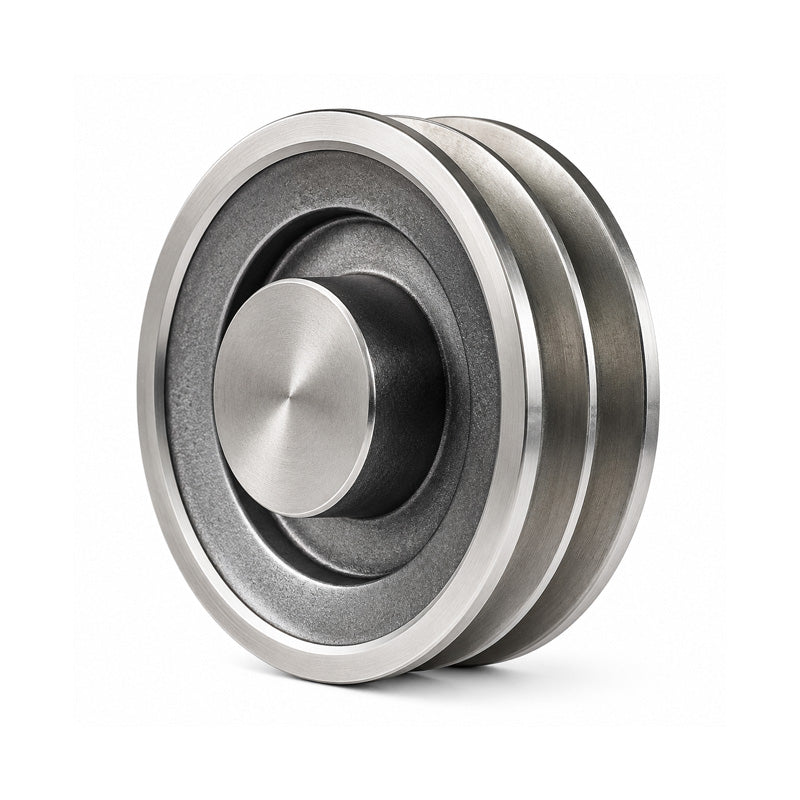

SPZ Section Un-Bored Aluminium Pulley with 2 Grooves 100mm Pitch Diameter (Hub Does Not Protrude Pulley Wall)
SPZ Section Un-Bored Aluminium Pulley with 2 Grooves 100mm Pitch Diameter (Hub Does Not Protrude Pulley Wall)
Regular price
$48.27
ex VAT
Regular price
Sale price
$48.27
ex VAT
In stock
Price Break
10+
$42.96
19+
$40.55
29+
$40.06
39+
$39.58
49+
$39.10
74+
$38.62
99+
$36.20
199+
$35.72
249+
$35.24
499+
$34.75
999+
$33.79
Couldn't load pickup availability
Description
Description
SPZ Section Aluminium Pulley Un-Bored: Powerdrive aluminium pulleys are used with v-belts, they are designed with a drill-able centre, pre-marked with a centre point enabling the user to create a precise custom bore to suit individual needs. Manufactured from high quality aluminium, Powerdrive pulleys are lightweight while being hard-wearing and incredibly reliable. Powerdrive aluminium pulleys are perfectly suited for applications such as air compressors generators or printing machinery.
Benefits: Powerdrive aluminium pulleys are available with pitch circle diameters (PCD) ranging from 50mm - 300mm and are made using 356.1 aluminium alloy.
- Brand / Quality:
- Major Brand - High Quality
- Grooves:
- 2
- Outside Diameter:
- 105mm
- Pitch Diameter:
- 100mm
Technical
Technical
| Number of Grooves | 2 |
|---|---|
| Outer Diameter | 105mm |
| Pitch | 100mm |
| Hub Diameter | 45mm |
| Hub Width | 28mm |
| Weight | 0.385kg |
