SKU: 100-3-NO11-DUN
Branded 100-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Branded 100-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
$27.83
ex VAT
Regular price
Sale price
$27.83
ex VAT
Equivalent to: 100-3-CL-COT 100-3-CL
In stock
Price Break
2+
$13.14
5+
$12.41
10+
$12.26
29+
$12.11
49+
$11.96
75+
$11.81
100+
$11.08
200+
$10.93
250+
$10.78
500+
$10.63
1000+
$10.34
Description
Description

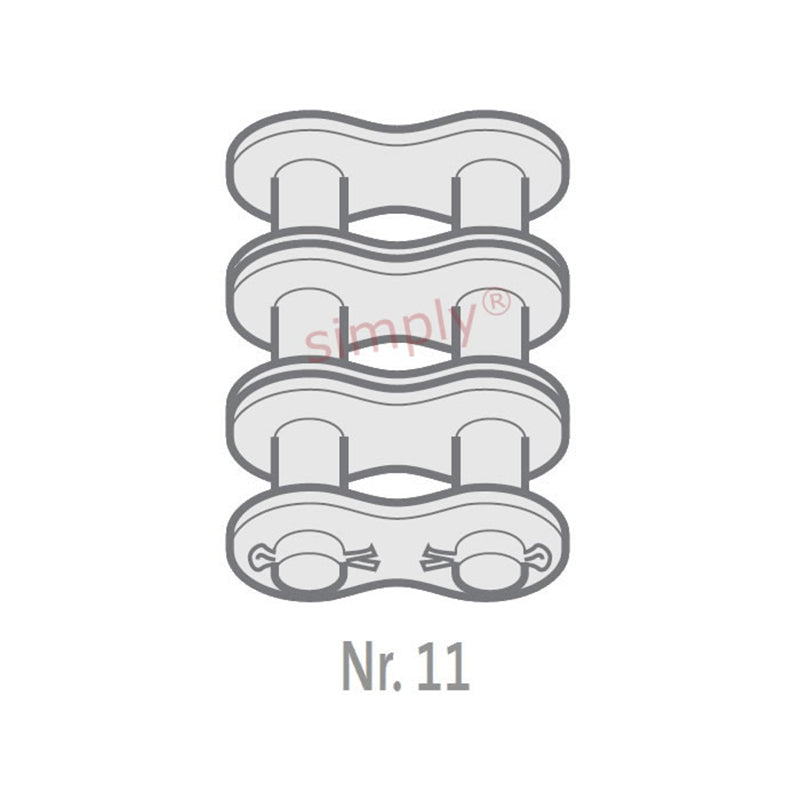

Branded COT / No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 100-3-CL-COT 100-3-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.1mm |
| Plate Width Inner max (E) | 3.9mm |
| Plate Width Outer max (F) | 3.9mm |
| Pin Diameter max (G) | 9.53mm |
| Pin Length max (H1) | 26.2mm |
| Connecting Link Extension max (J) | 9.60000000000001mm |
| ISO606 Tensile Strength min | 261000 N |
| Weight | 35.76kg/m |
