SKU: 0XSS316-JUB

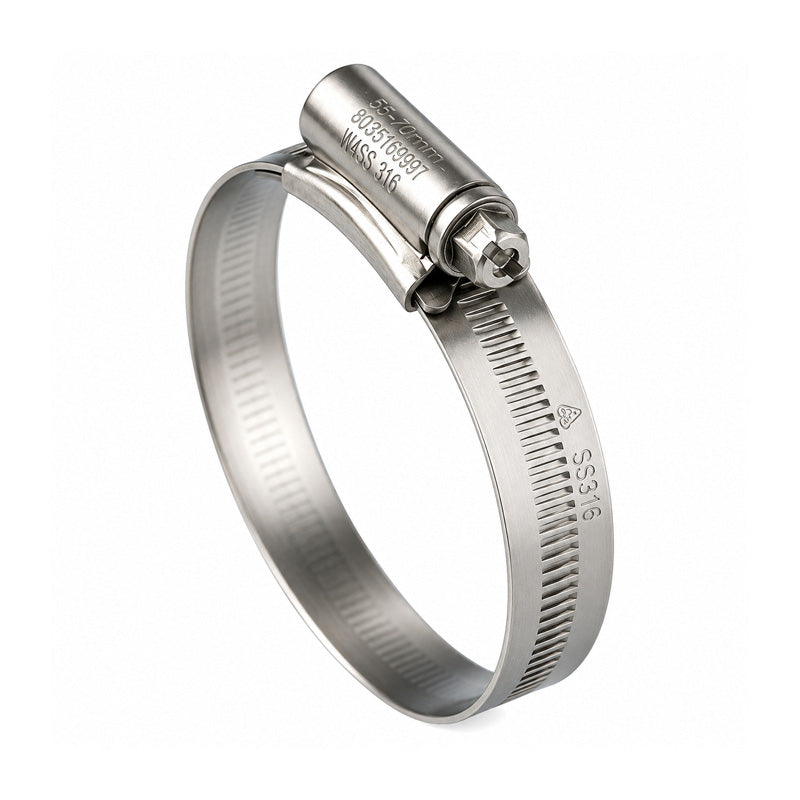

0XSS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 18mm-25mm Band Width 13mm
0XSS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 18mm-25mm Band Width 13mm
Regular price
$7.35
ex VAT
Regular price
Sale price
$7.35
ex VAT
In stock
Price Break
5+
$7.28
10+
$6.98
20+
$6.84
50+
$6.62
100+
$6.47
500+
$6.10
1000+
$5.15
Couldn't load pickup availability
Description
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 18mm
- Max Adjustment Range:
- 25mm
Technical
Technical
| BS No. | 25 |
|---|---|
| Adjustment Range | 18mm - 25mm |
| Adjustment Range | 3/4 - 1 inch |
| Band Width (+/- 0.1) | 13mm |
| Band Thickness (+/- 0.1) | 0.914mm |
| Recommended Torque | 4.2Nm |
| Maximum Torque | 5.6Nm |
| Maximum Pressure | 203 Psi |
