SKU: 08B-2-SD-NO12-RENOLD
Renold SD 08B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Renold SD 08B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Regular price
$14.11
ex VAT
Regular price
Sale price
$14.11
ex VAT
In stock
Price Break
2+
$6.66
5+
$6.29
10+
$6.22
29+
$6.14
49+
$6.07
75+
$5.99
100+
$5.62
200+
$5.54
250+
$5.47
500+
$5.39
1000+
$5.24
Description
Description

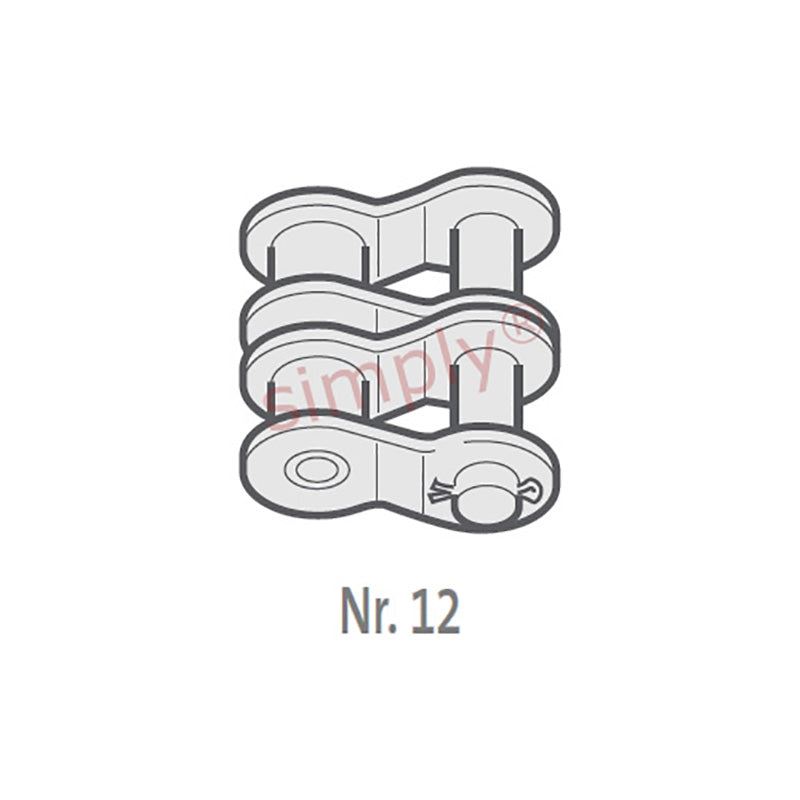

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.75mm |
| Roller Diameter max (C) | 8.51mm |
| Plate Height max (D) | 11.8mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 4.45mm |
| Pin Length max (H2) | 31mm |
| Connecting Link Extension max (J) | 1.1mm |
| Transverse Pitch nom (K) | 13.92mm |
| ISO606 Tensile Strength min | 31100 N |
| Weight | 0.006kg/m |
