SKU: 06B-3-BB-NO26-RENOLD
Renold Blue Box 06B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Renold Blue Box 06B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
$16.21
ex VAT
Regular price
Sale price
$16.21
ex VAT
In stock
Price Break
2+
$7.65
5+
$7.22
10+
$7.14
29+
$7.05
49+
$6.97
75+
$6.88
100+
$6.45
200+
$6.36
250+
$6.28
500+
$6.19
1000+
$6.02
Description
Description

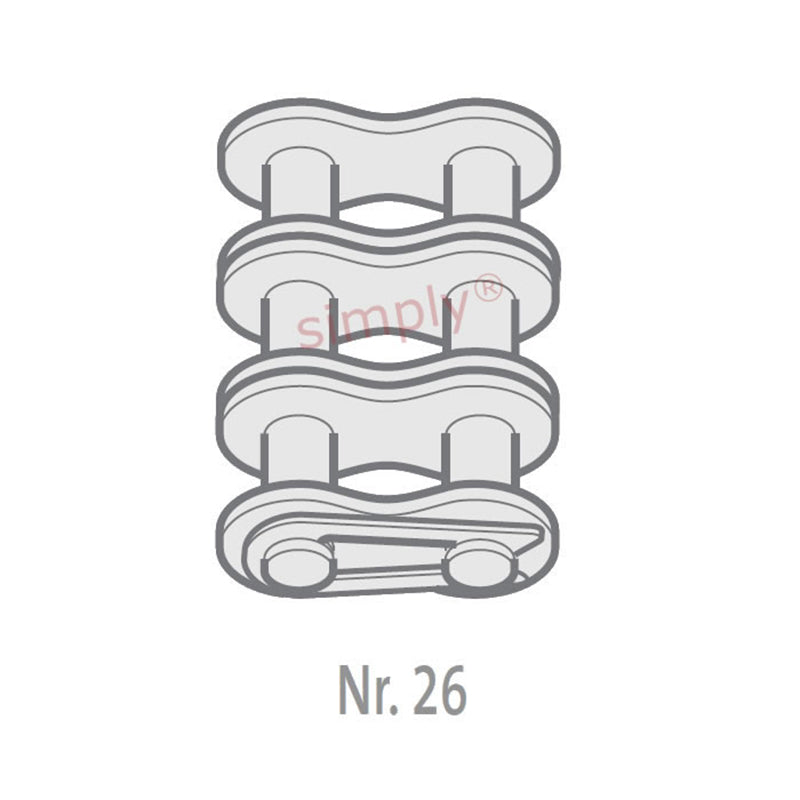

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.29mm |
| Plate Width Outer max (F) | 1.04mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H2) | 33.3mm |
| Connecting Link Extension max (J) | 1.3mm |
| Transverse Pitch nom (K) | 10.24mm |
| ISO606 Tensile Strength min | 24900 N |
| Weight | 0.002kg/m |
