SKU: 06B-2-BB-NO26-RENOLD
Renold Blue Box 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Renold Blue Box 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
$16.23
ex VAT
Regular price
Sale price
$16.23
ex VAT
In stock
Price Break
10+
$14.44
19+
$13.63
29+
$13.47
39+
$13.31
49+
$13.15
74+
$12.98
99+
$12.17
199+
$12.01
249+
$11.85
499+
$11.69
999+
$11.36
Couldn't load pickup availability
Description
Description

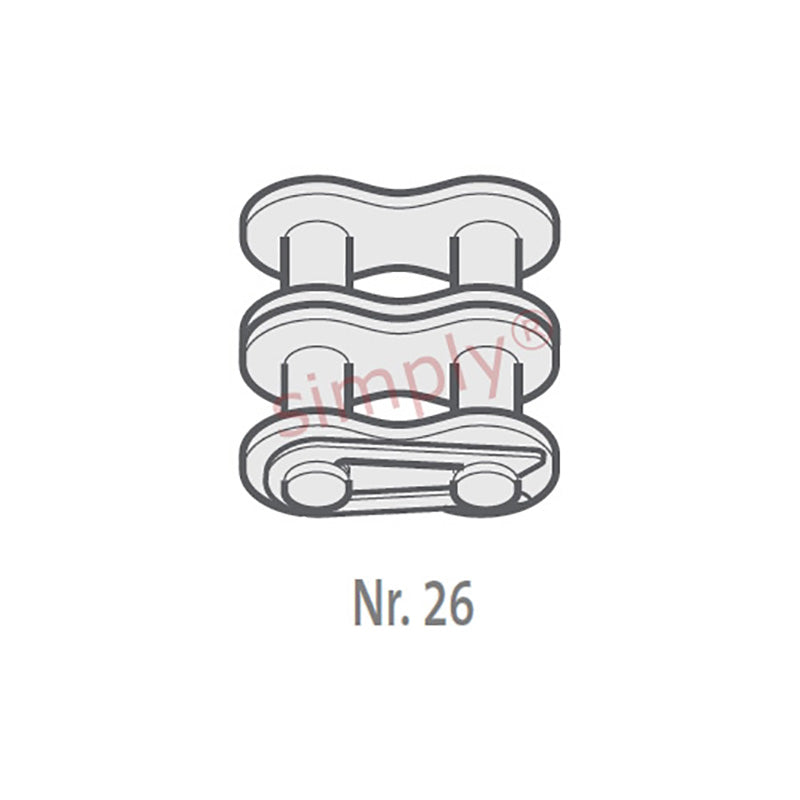

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.29mm |
| Plate Width Outer max (F) | 1.04mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H1) | 23mm |
| Connecting Link Extension max (J) | 1.3mm |
| ISO606 Tensile Strength min | 16900 N |
| Weight | 0.002kg/m |
