SKU: 06B-1-BB-NO12-RENOLD
Renold Blue Box 06B-1-NO12 BS Simplex Single Cranked Cottered Link 3/8 inch Pitch
Renold Blue Box 06B-1-NO12 BS Simplex Single Cranked Cottered Link 3/8 inch Pitch
Regular price
$14.62
ex VAT
Regular price
Sale price
$14.62
ex VAT
In stock
Price Break
10+
$13.01
19+
$12.28
29+
$12.13
39+
$11.99
49+
$11.84
74+
$11.70
99+
$10.97
199+
$10.82
249+
$10.67
499+
$10.53
999+
$10.23
Couldn't load pickup availability
Description
Description

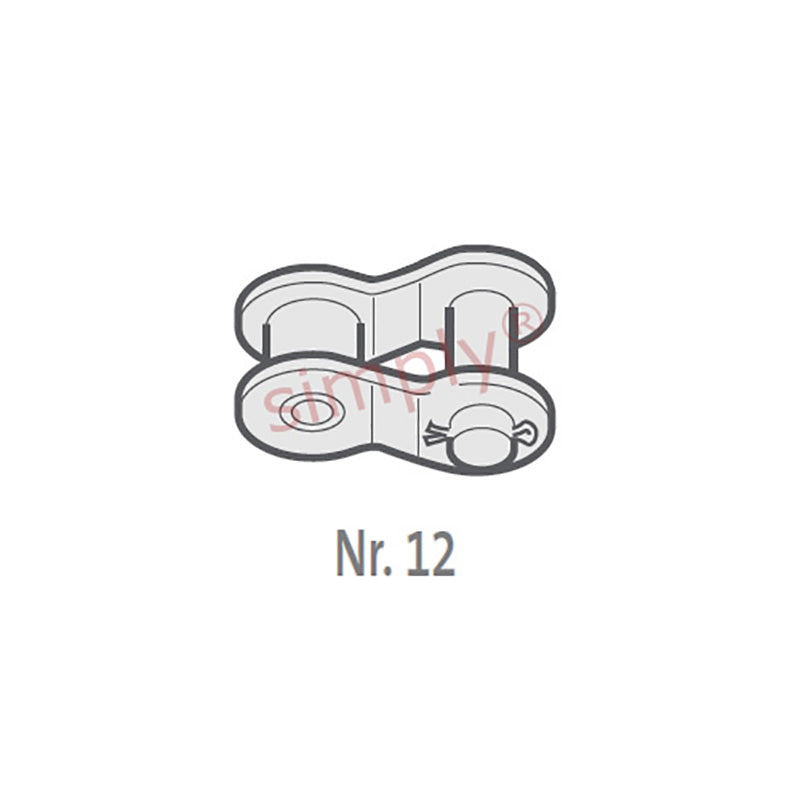

| Renold No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.29mm |
| Plate Width Outer max (F) | 1.04mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H1) | 12.5mm |
| Connecting Link Extension max (J) | 1.3mm |
| ISO606 Tensile Strength min | 8900 N |
| Weight | 0.001kg/m |
